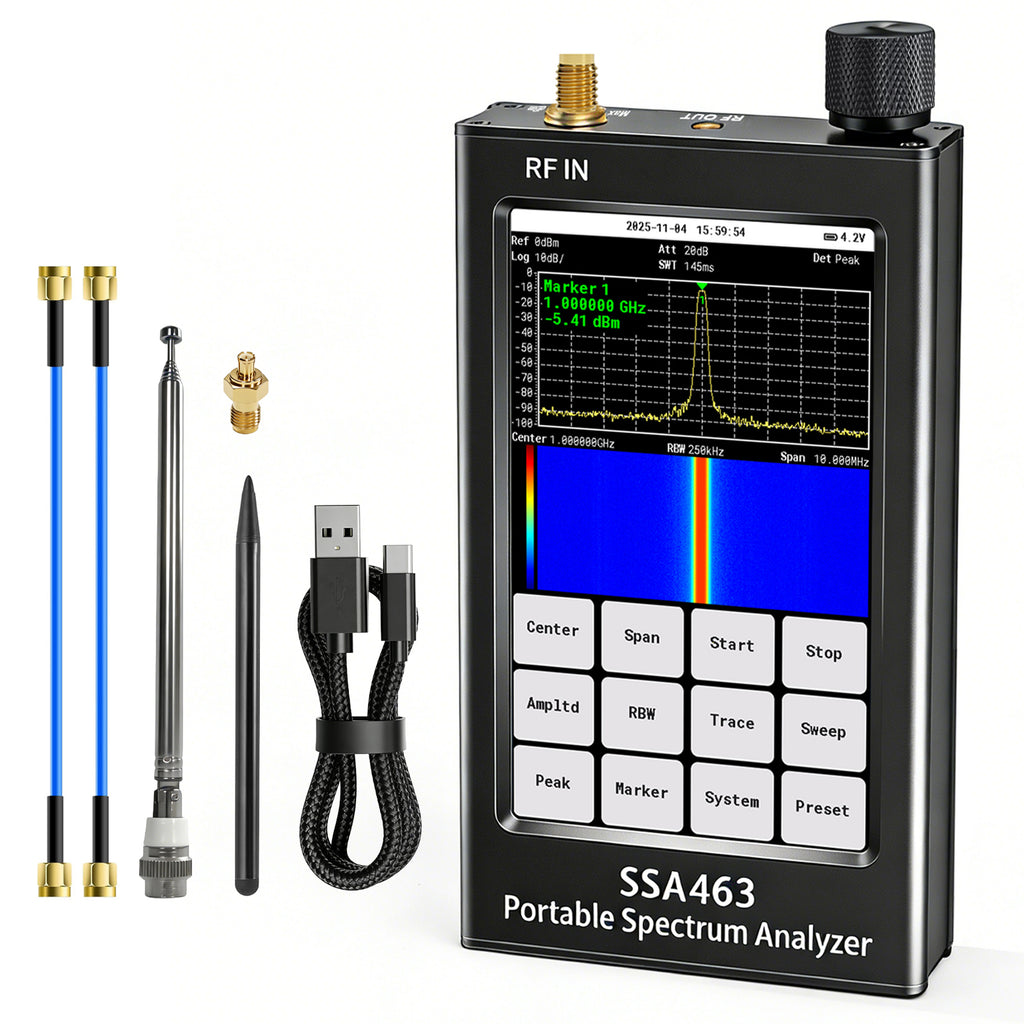

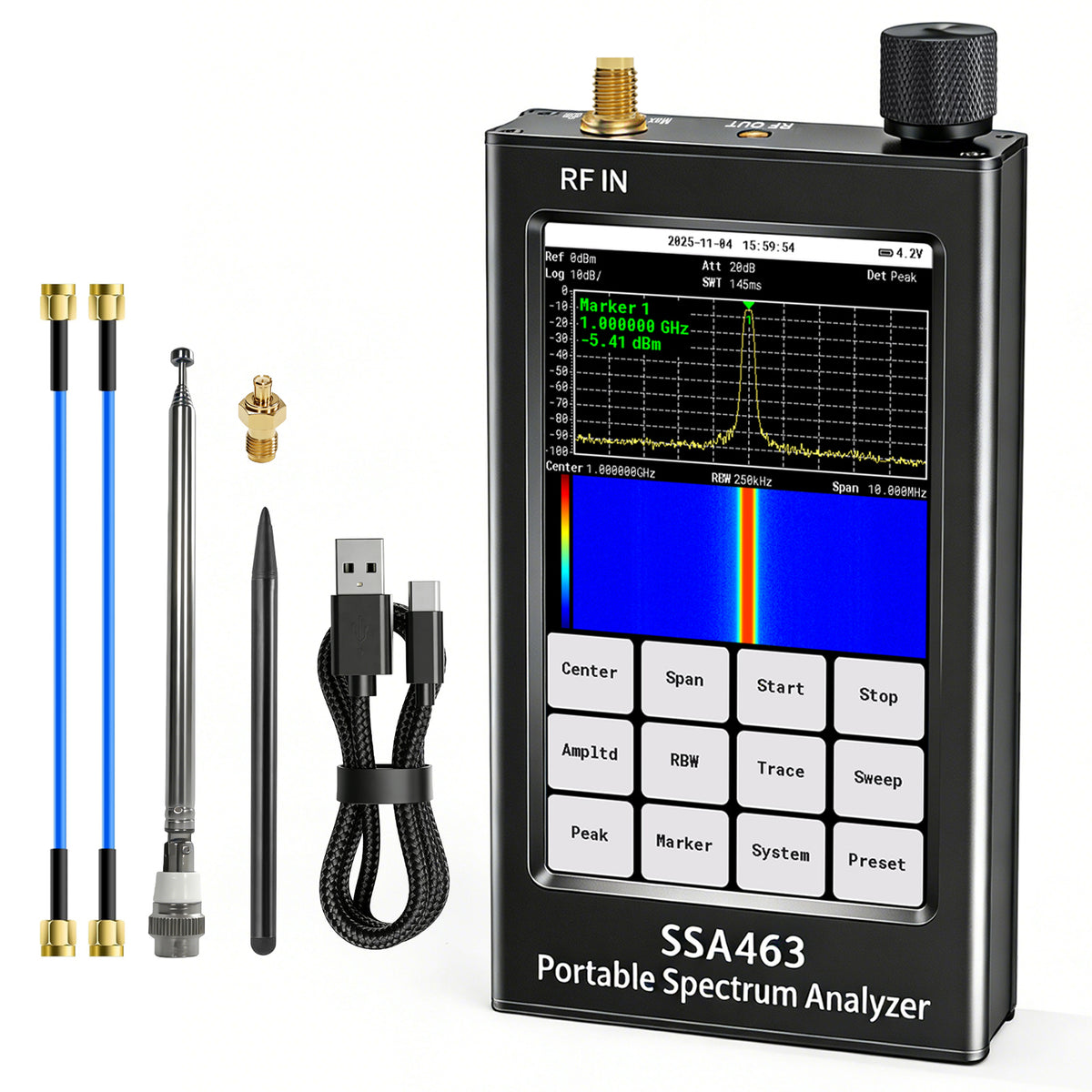

AURSINC SSA463 Portable Spectrum Analyzer, 35MHz-6.3GHz Frequency Analyzer, 4.3" Touchscreen, Built-in 30dB Precision Attenuator
AURSINC SSA463 Portable Spectrum Analyzer, 35MHz-6.3GHz Frequency Analyzer, 4.3" Touchscreen, Built-in 30dB Precision Attenuator

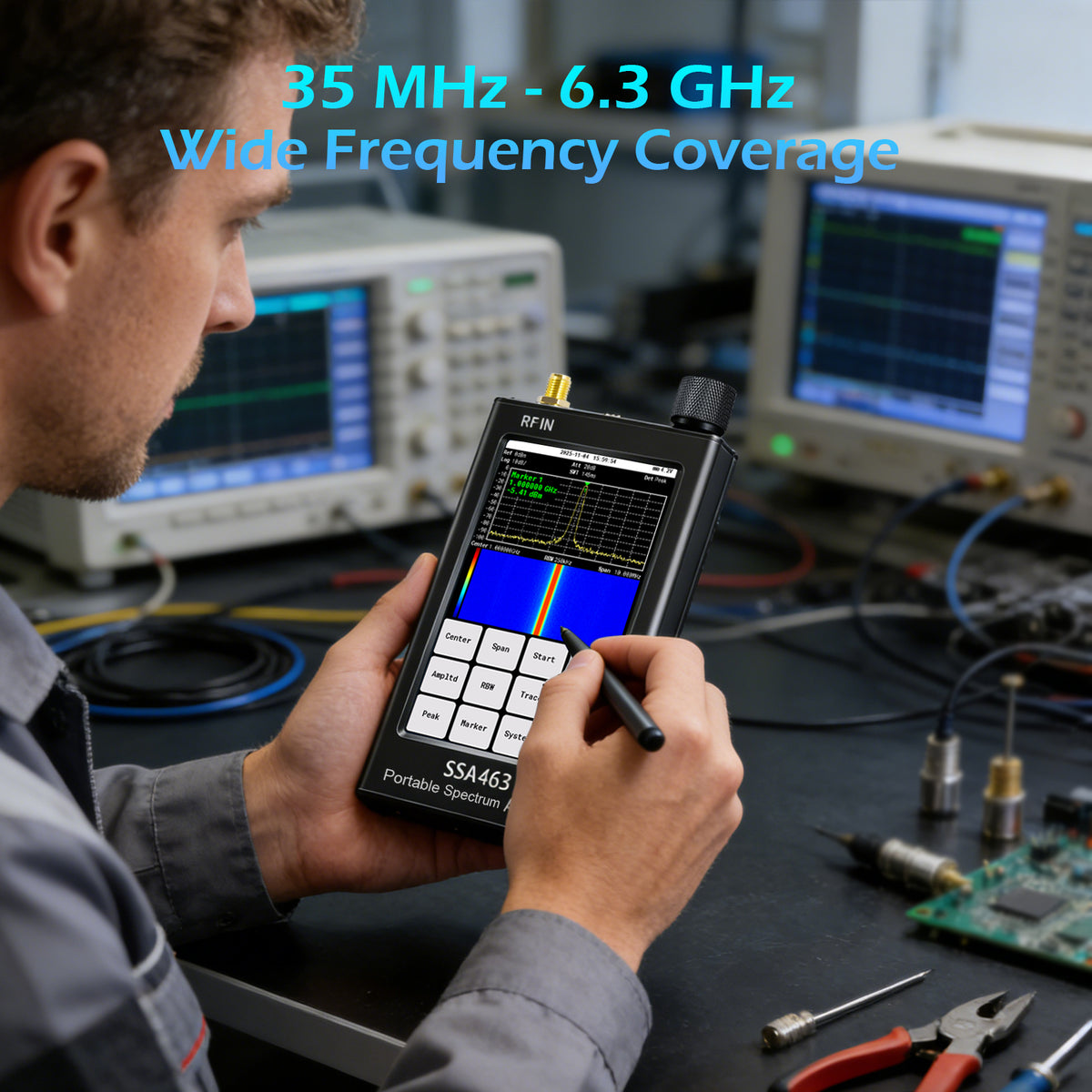

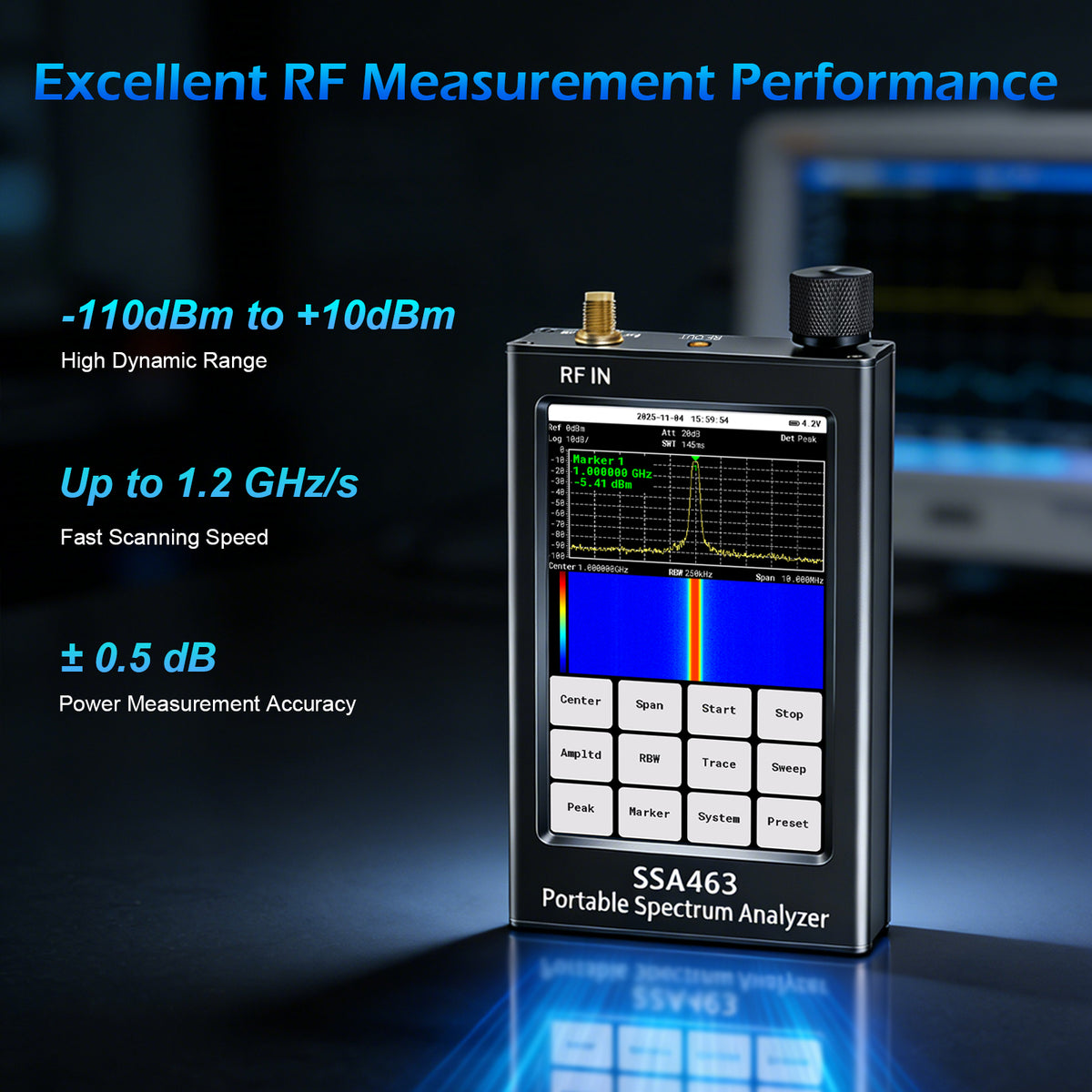

- Wide Frequency Coverage & High Dynamic Range: Covers a broad RF range from 35 MHz to 6.3 GHz, suitable for diverse wireless communication measurements. Capture faint signals easily with a dynamic range of -110 dBm to +10 dBm and a sweep speed up to 1.2 GHz/s. Deliver reliable data with a high-performance RF front end achieving a typical power measurement accuracy of ±0.5 dB

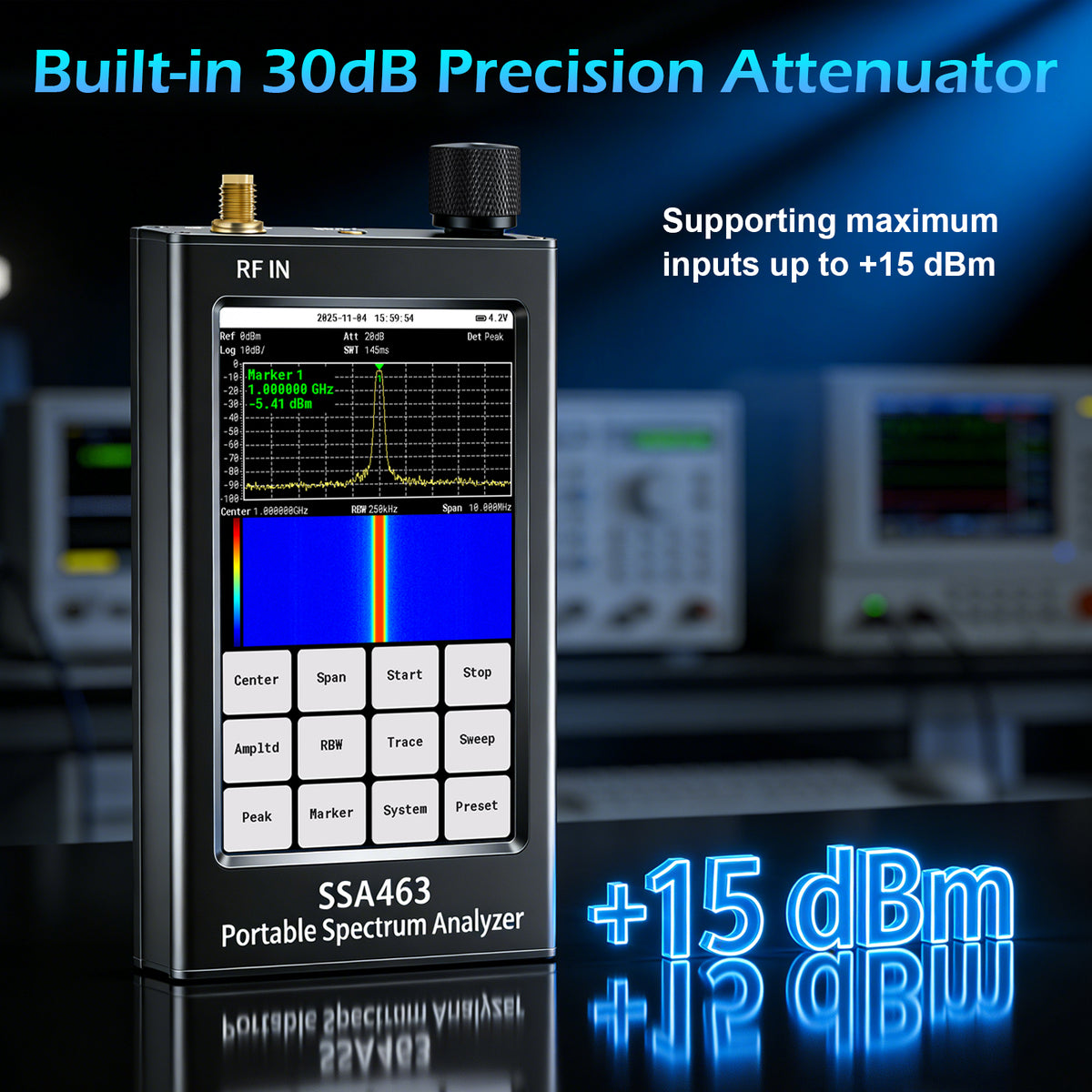

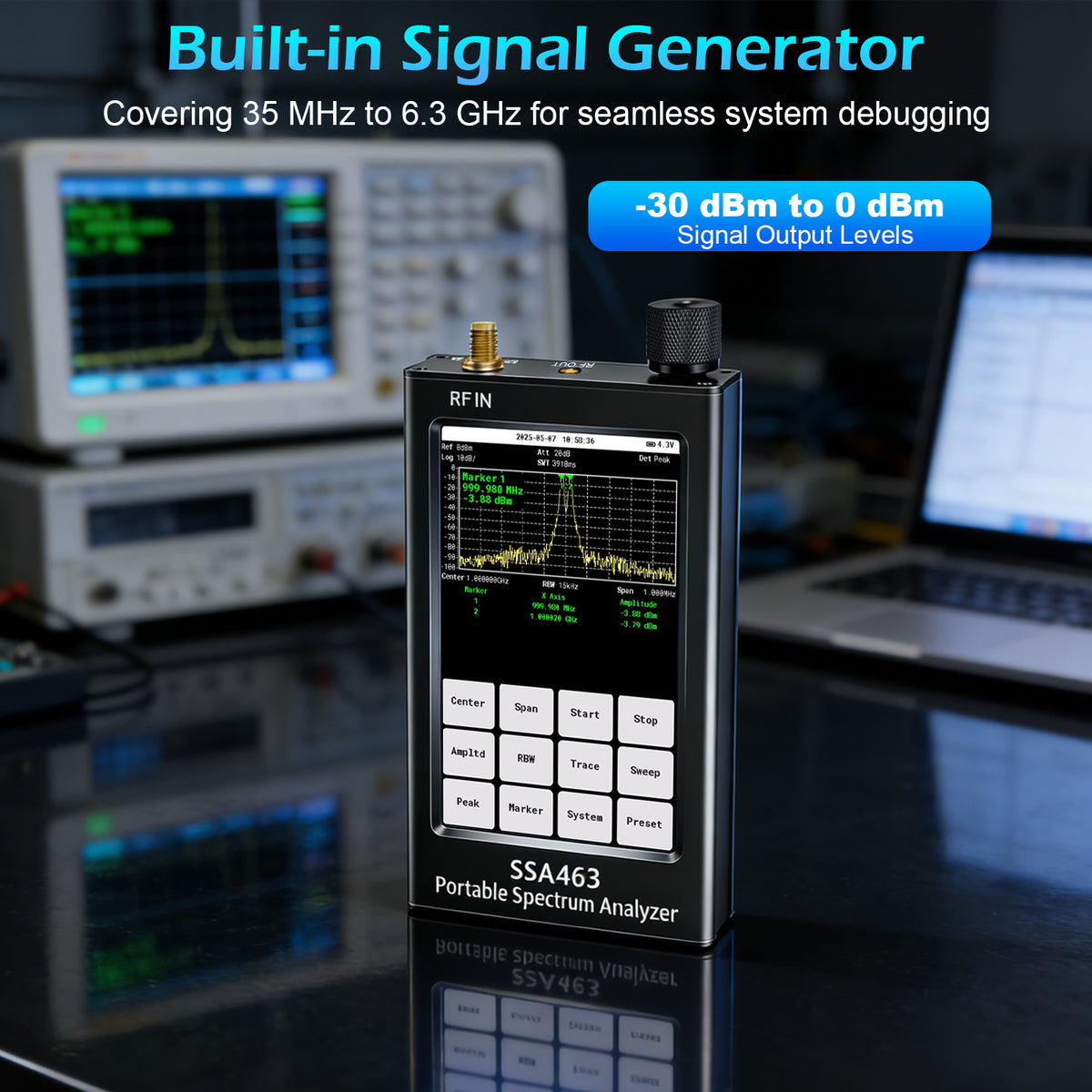

- Built-in Signal Generator & Precision Attenuator: Integrated signal generator outputs 35 MHz-6.3 GHz (-30 dBm to 0 dBm) for system debugging and verification. Equipped with a 0-30 dB 1dB-step attenuator, supporting maximum input power of +15 dBm to protect the RF front end. The SMA female RF port ensures reliable signal connection

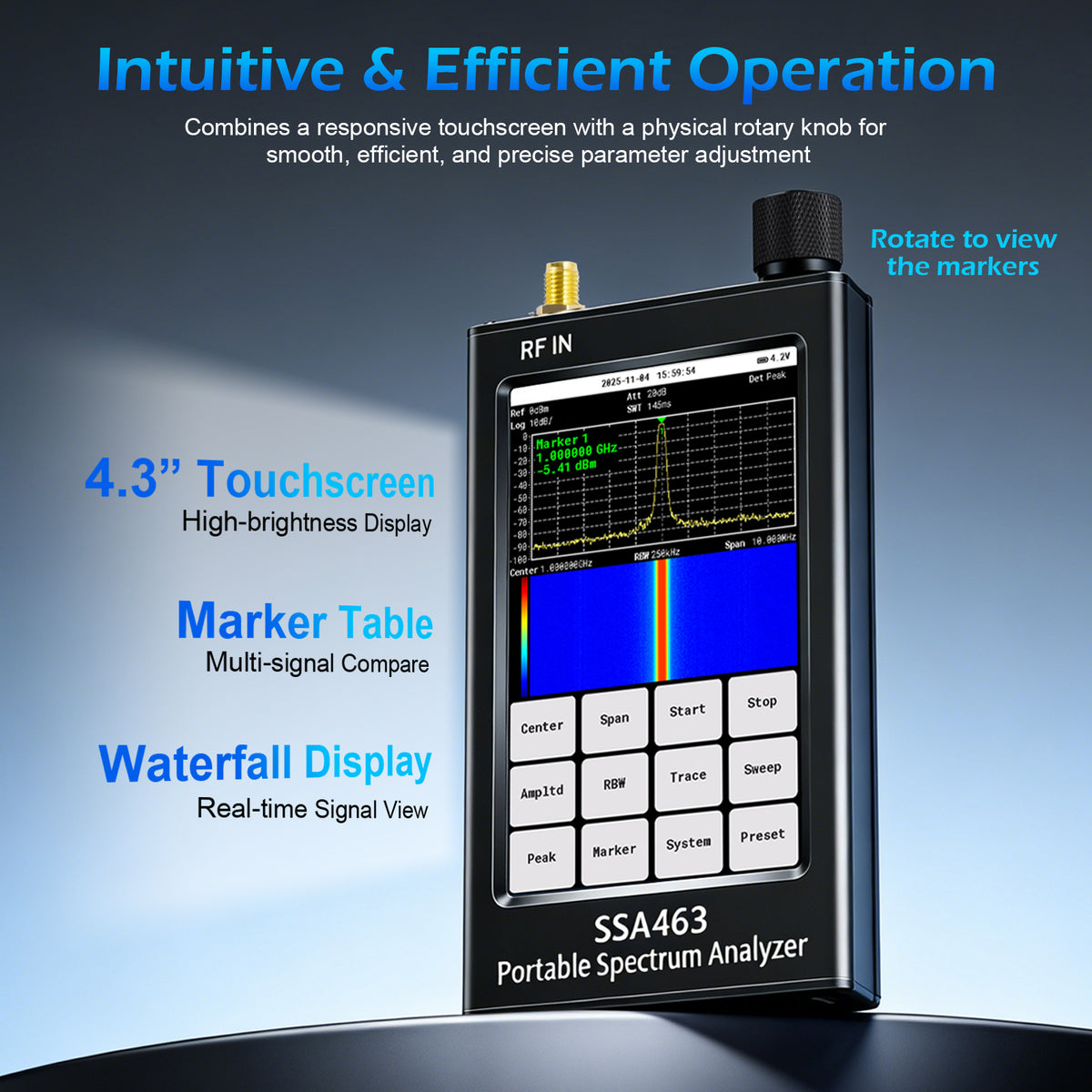

- Precise Signal Analysis: Features Marker Table for multi-point comparison, Δ Marker for frequency and amplitude difference measurement, and Waterfall Display for time-varying signal visualization. Supports 4 trace modes including Clear/Write, Max Hold, Min Hold, and Average. Identify peak signals instantly with the one-touch Peak Search and automatic marker positioning

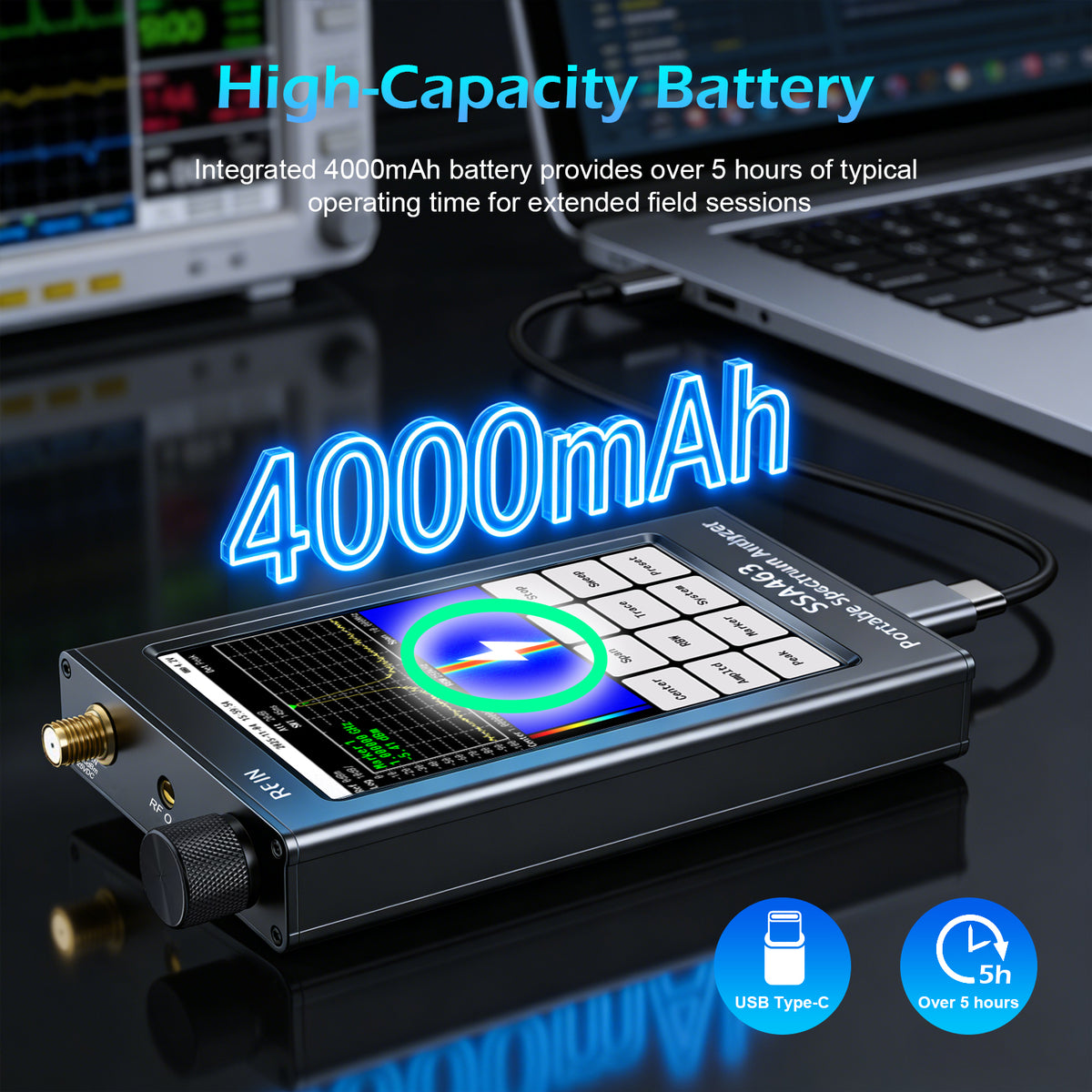

- Portable Design & Long Battery Life: The SSA463 spectrum analyzer features a 4.3-inch high-brightness IPS capacitive touchscreen that offers clear visibility outdoors and a rotary knob for smooth control. Powered by a 4000 mAh rechargeable battery providing over 5 hours of typical operating time, it features USB Type-C charging and compact dimensions (125×74.3×22 mm) for on-the-go testing

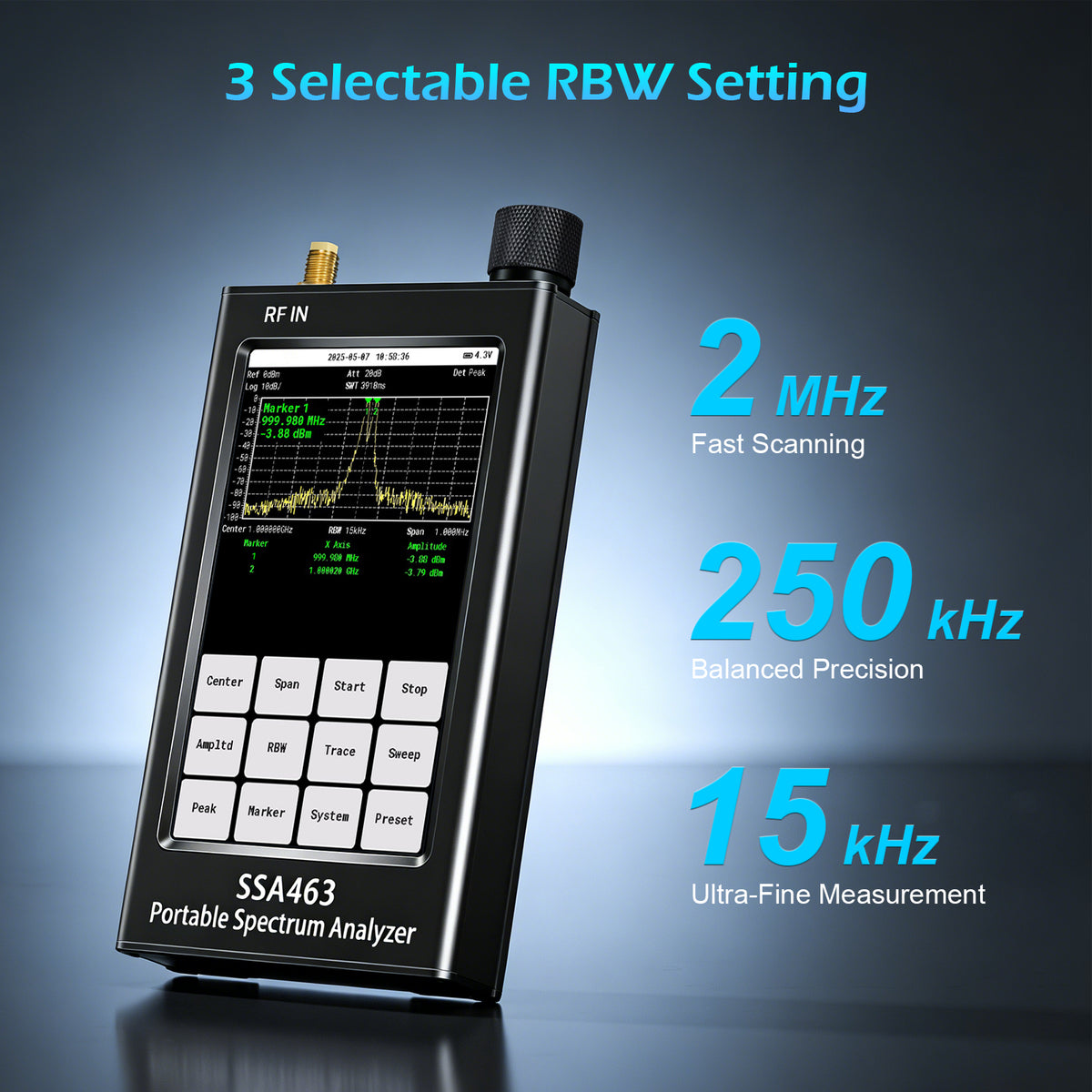

- Selectable Resolution Bandwidth(RBW): Offers three selectable RBW settings at 2 MHz, 250 kHz, and 15 kHz to balance sweep speed and frequency resolution, letting the SSA463 seamlessly adapt from fast wideband scanning to high-precision narrowband analysis. Support diverse applications including EMI pre-scanning, harmonic analysis, and spurious emission testing
- Professional Measurement Capabilities: Measures S-parameters, VSWR, impedance, reflected and transmitted power, and frequency characteristics. Features aluminum alloy enclosure with internal shielding for EMI suppression, ensuring stable performance in noisy environments during field testing, laboratory research, and educational demonstrations
