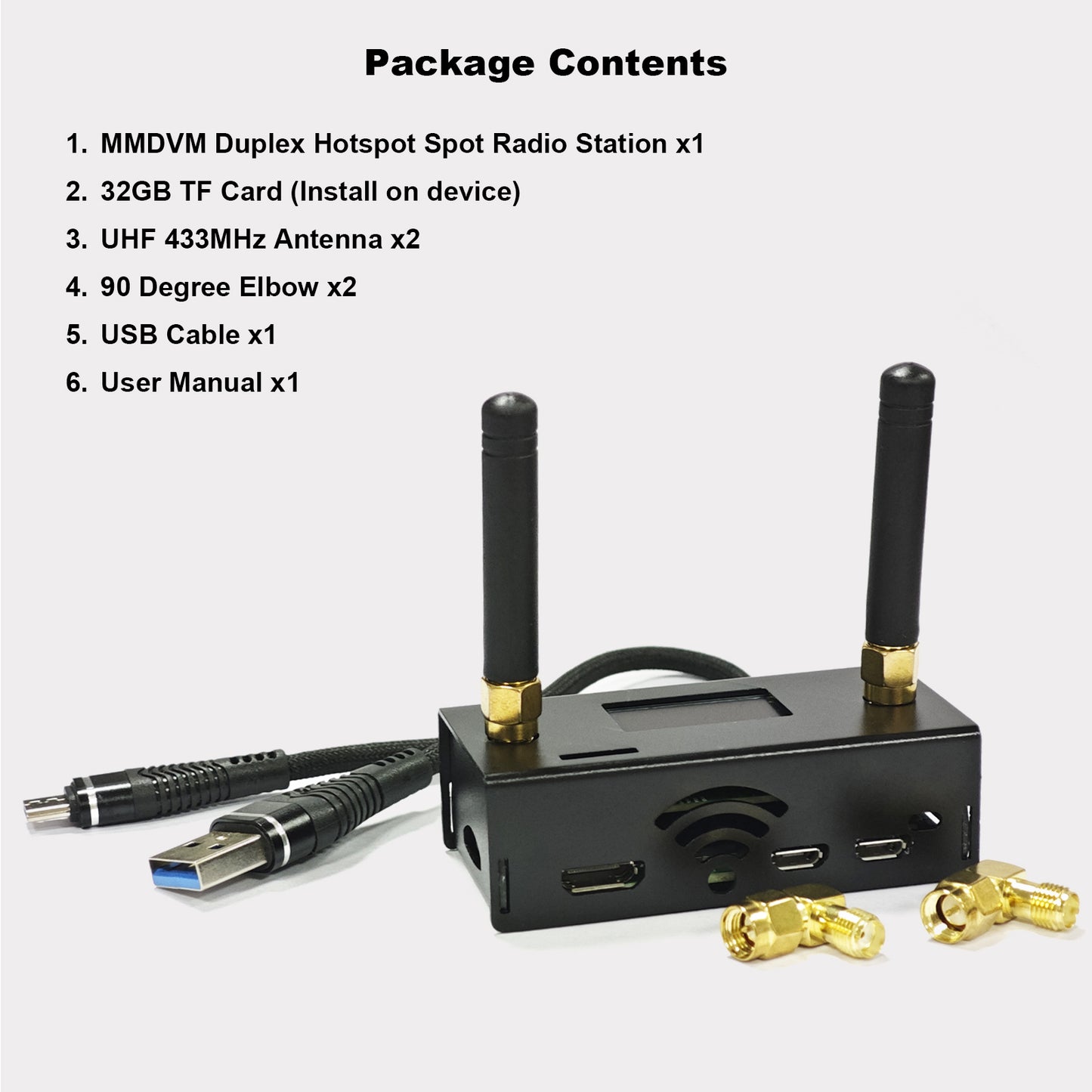

AURSINC MMDVM Duplex Hotspot Spot Radio Station WiFi Digital Voice Modem Work Contained with Raspberry Pi Zero 2W, Supports C4FM YSF POCSAG NXDN DSTAR P25 DMR, Pi-Star/WPSD, 2025 Upgraded

AURSINC MMDVM Duplex Hotspot Spot Radio Station WiFi Digital Voice Modem Work Contained with Raspberry Pi Zero 2W, Supports C4FM YSF POCSAG NXDN DSTAR P25 DMR, Pi-Star/WPSD, 2025 Upgraded

$139.99
$159.99 $139.99
Sale Sold out
Shipping calculated at checkout.
  • Dual-Band Support: Upgraded duplex design: TX (Transmit) and RX (Receive) are default 0, no need to set offsets. Covers UHF band 433-900MHz and VHF band 144-146MHz (including 144-148, 219-225, 420-475, 842-950MHz), ideal for 430-440MHz amateur band. Supports Pi-Star control modes: Duplex/Simple
  • Effortless Setup: Note: Equipped with Raspberry Pi Zero 2W for faster processing, smoother WiFi, and enhanced stability. Pi-Star software is preloaded on TF card—no repeated downloads. Onboard LED indicators show real-time status (Tx/Rx/PTT/operating mode). For continuous screen display, select "OLED Type 3" in Pi-Star "Display Type" and set port to "Modem"
  • Compatibility: Supports C4FM, YSF, NXDN, D-STAR, P25, and DMR protocols, defaulting to UHF work. Please note: Not compatible with Baofeng UV series (UV-5R, 5R+, 5R Plus) and BF series (RD-5R, 5X). Our test was done in DMR mode; adjust working mode parameters as needed for other modes.
  • WiFi Connection: Pi Zero 2W only supports 2.4GHz WiFi SSID (5.8GHz not supported). Ensure WiFi password type is WPA (not WEP). Power on the hotspot for 2 minutes to auto-connect to your router. After power-on, access the configuration page via pi-star/admin/configure.php
  • Upgrade Mode Operation: Press and hold the BOOT button to power on the device. Or press and hold the BOOT button at any time, then press the RST button briefly and release it. When the SVC light goes off, the device enters the upgrade mode (Access path: pi-star / Expert / SSH Access; Username: pi-star; Password: radpberry). You can execute the upgrade command directly without setting jumpers. (Execute in the Pi-star terminal): sudo pistar-mmdvmhshatflash hs_dual_hat
