AURSINC NanoVNA Testboard Kit, Test Demo Set Tool Compatible with DIP Quickly Assemble a Simple RF Circuit and Evaluate Performance on NanoVNA H H4 Antenna Analyzer

AURSINC NanoVNA Testboard Kit, Test Demo Set Tool Compatible with DIP Quickly Assemble a Simple RF Circuit and Evaluate Performance on NanoVNA H H4 Antenna Analyzer

$12.99
$14.99 $12.99
Sale Sold out
Shipping calculated at checkout.

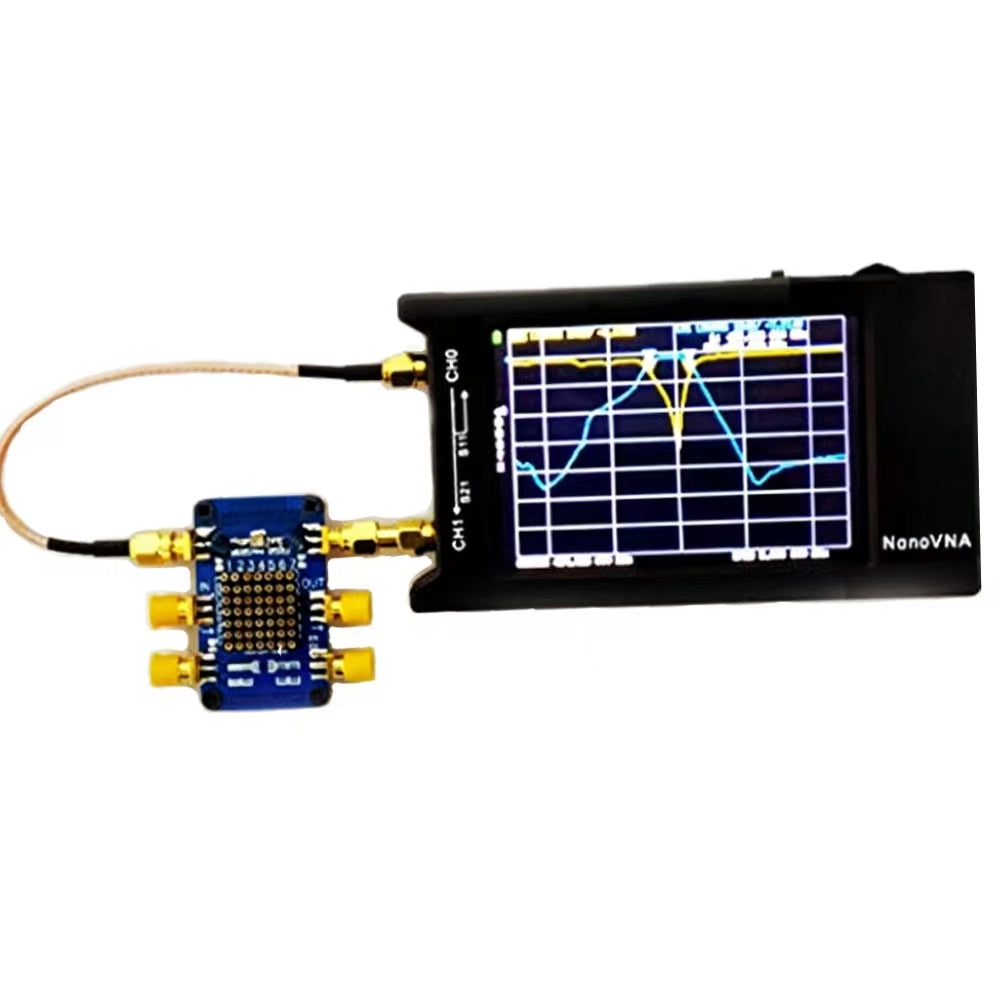

  • The Testboard kit allows NanoVNA users to assemble a useful component jig to quickly build a simple RF circuit and evaluate its performance on the NanoVNA

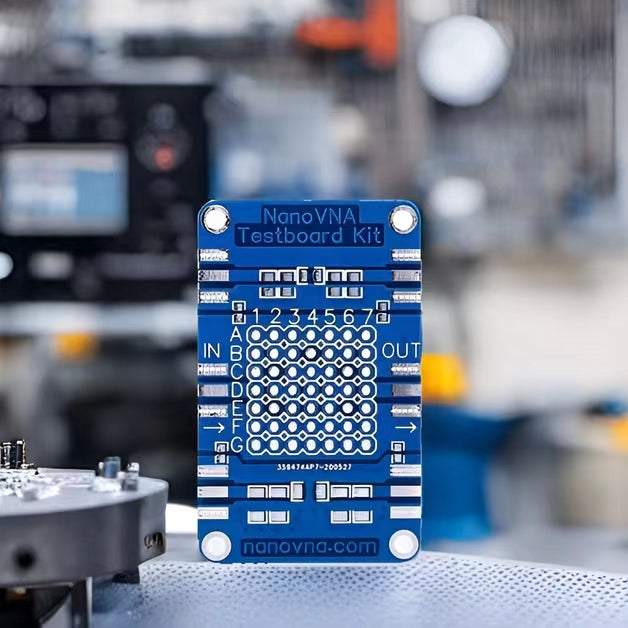

  • This test board contains a plug-in test circuit suitable for VNA test boards, and a set of 0805 and 1206 patch test circuits is added

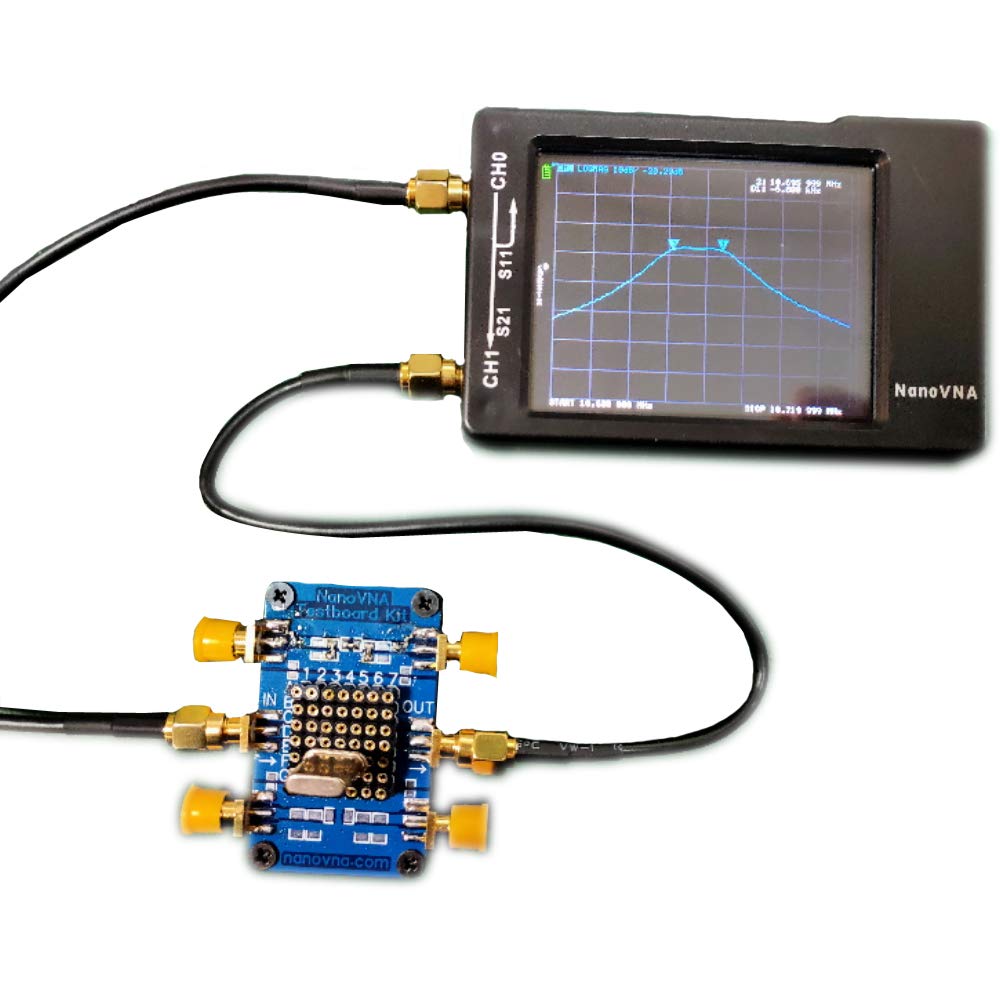

  • The testboard kit is used for user-friendly measurement of DIP and SMT devices with a NanoVNA or other vector analyzers
  • The product comes unassembled, so you need to assemble it according to your needs. Please prepare your own welding tools and build a test circuit based on your testing requirements. We are not responsible for circuit guidance
  • The SMT circuit cannot fully cover all test conditions. Some tests may need to be adjusted. Please ensure you have sufficient practical skills

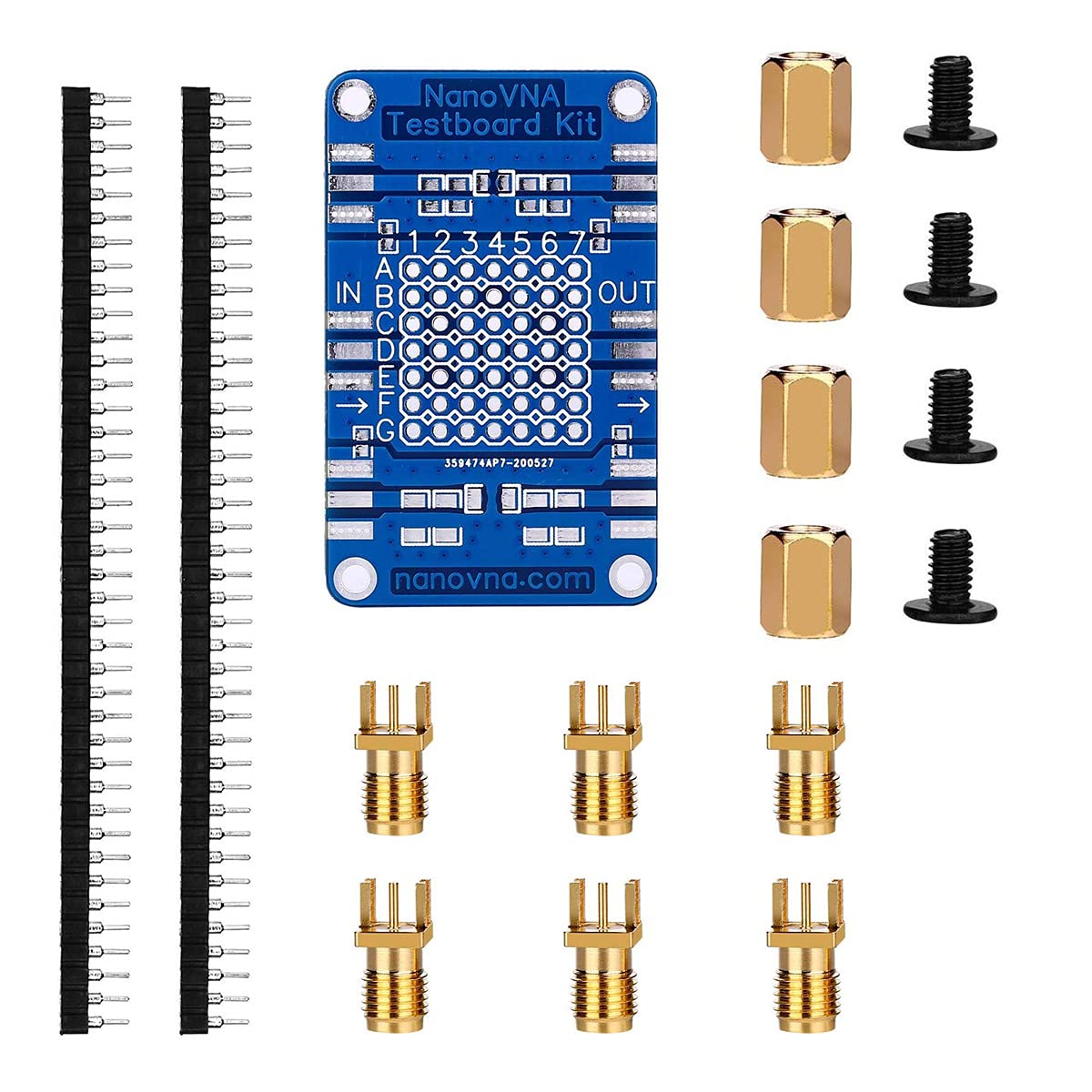

  • Package include: 1x Testboard Printed Circuit Board (Compatible with DIP pads of VNWA Testboard and add 0805 and 1206 STM pads), 6x SMA End Connectors (same type as in NanoVNA), 4x Copper 8mm spacers, 4x M2.5 4mm screws, 2x 40 pin female SIL Socket
