AURSINC Tinysa Ultra+ ZS407 Spectrum Analyzer, 4.0 Inch 100kHz-7.3GHz Tinysa Handheld Frequency Analyzer, 2-in-1 RF Signal Generator 100kHz to 900MHz MF/HF/VHF UHF Input, HW V0.5.4 2025 Upgraded

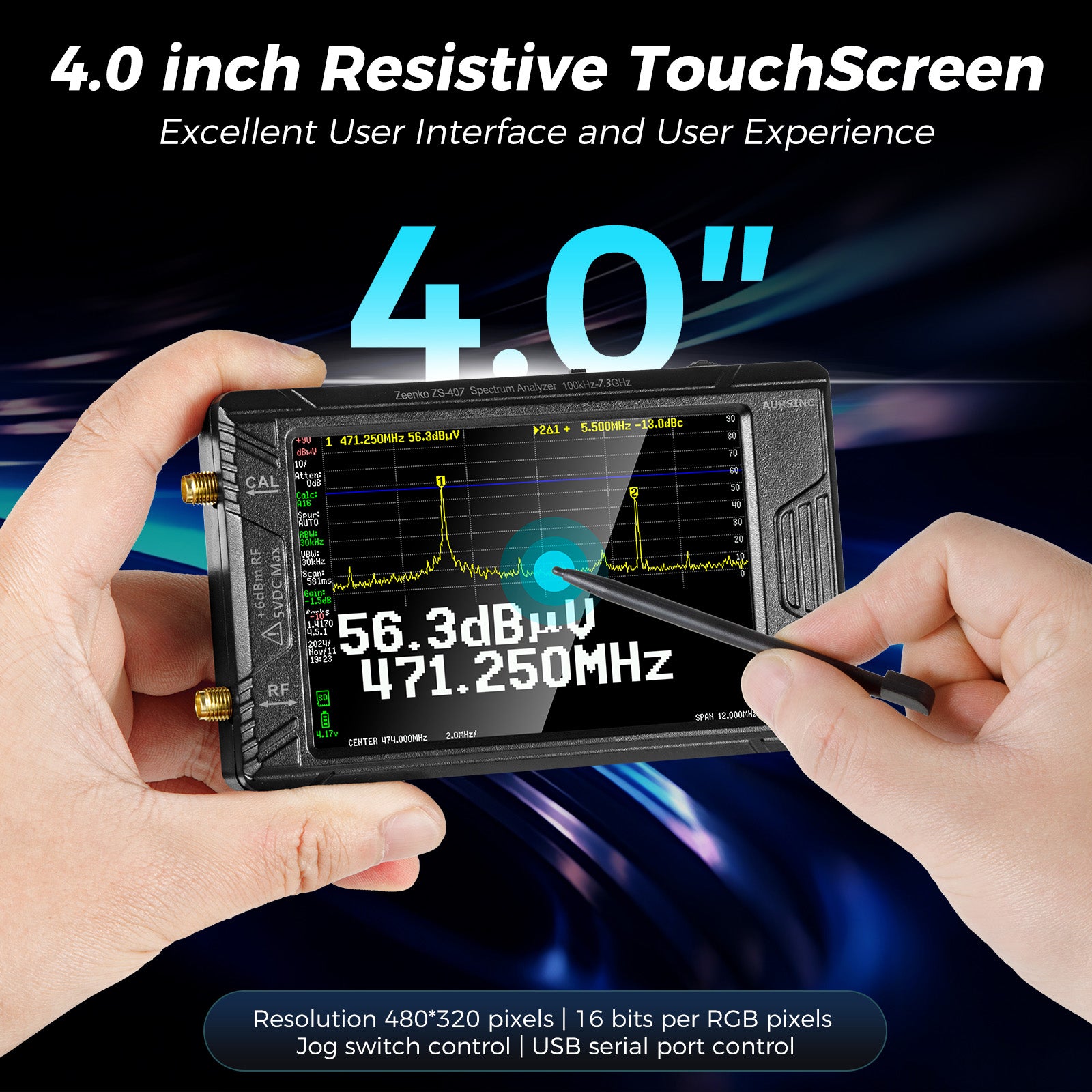

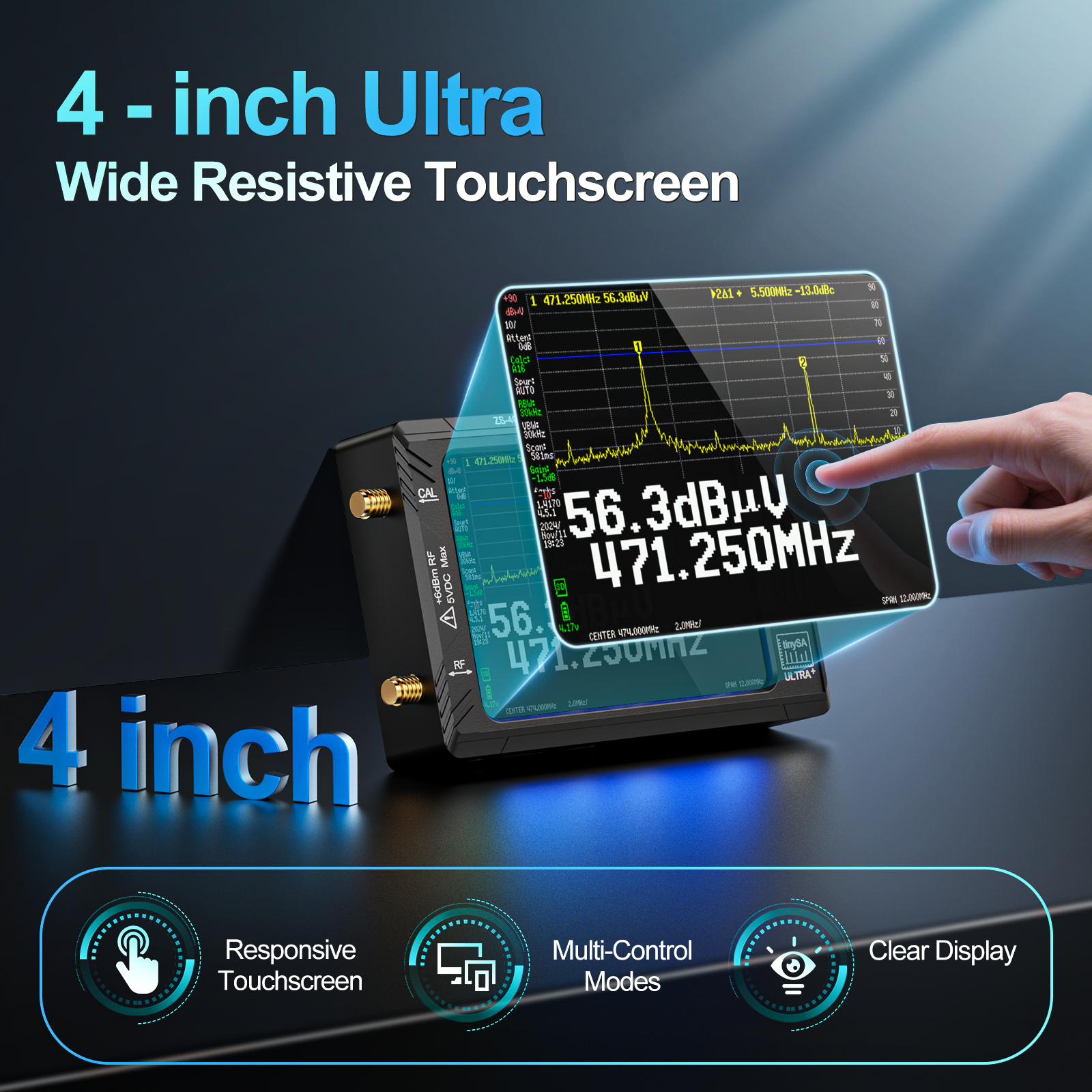

• AURSINC 2025 Upgraded Tinysa Ultra plus ZS407 spectrum analyzer: With ultra-wide frequency range of 100kHz-7.3GHz, enabling you to capture and analyze a broader spectrum of signals precisely. With 4” IPS-TFT LCD (480×320) display can show a maximum of 450 points per scan, clearly presenting signal details and measurement results. Supports PC control, enabling easy data transfer and analysis
• Ultra-Wide Frequency Range: The TinySA Ultra+ ZS407 Spectrum Analyzer covers a frequency range of 0.1 - 900MHz, with Ultra mode enabled up to 7.3 GHz, level calibrated up to 7.3GHz. Can observe signals up to 12GHz, which represents a significant improvement over previous models. It can accurately capture and analyze a broader range of signals, making it suitable for a variety of complex RF testing scenarios

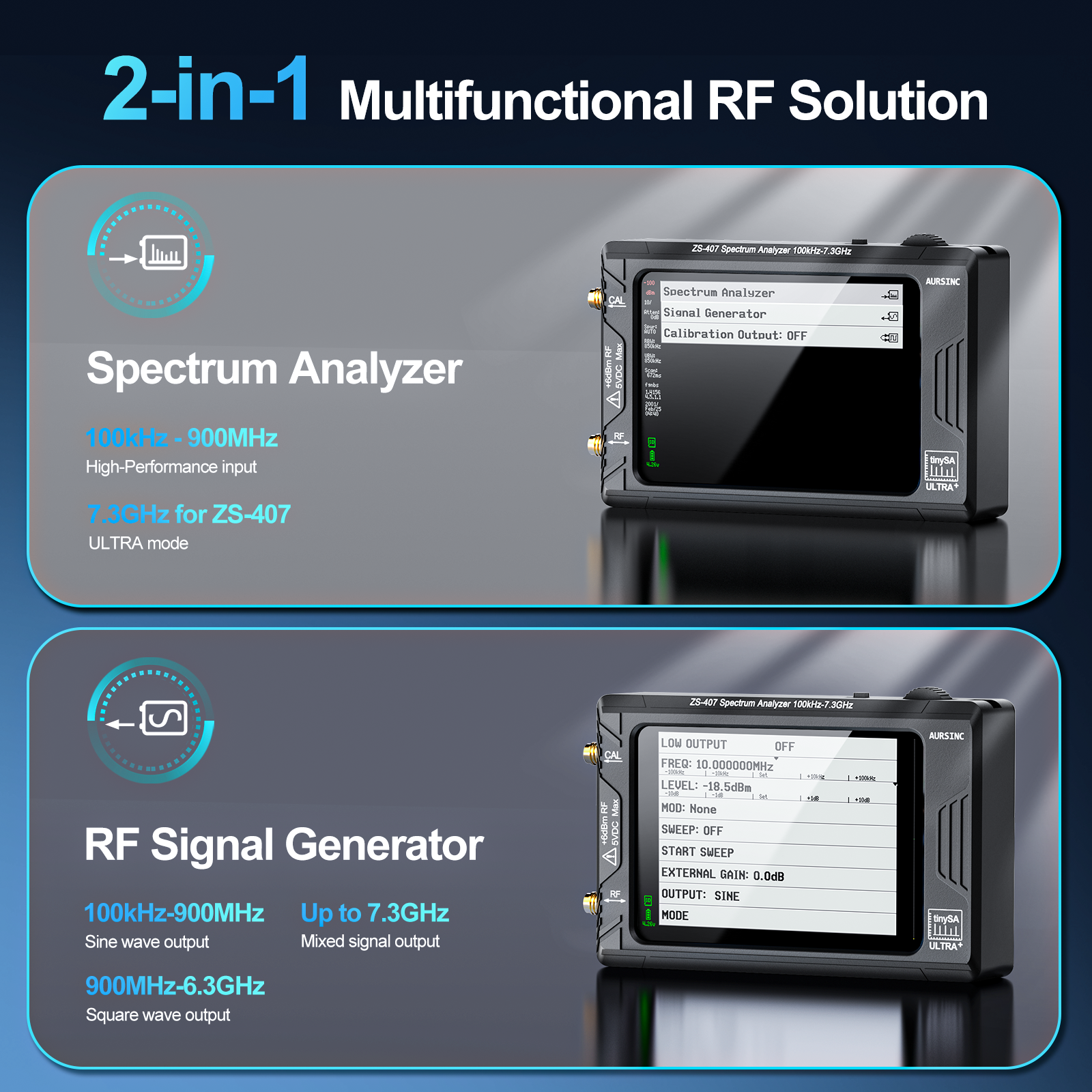

• Powerful Signal Generation Capability: The Tiny sa Ultra+ ZS407 can act as a Signal Generator with sine wave output between 0.1 MHz and 900 MHz, square wave output up to 6.3 GHz, or RF test signal output up to 7.3 GHz. It has a rich variety of signal generation types and a wide frequency range

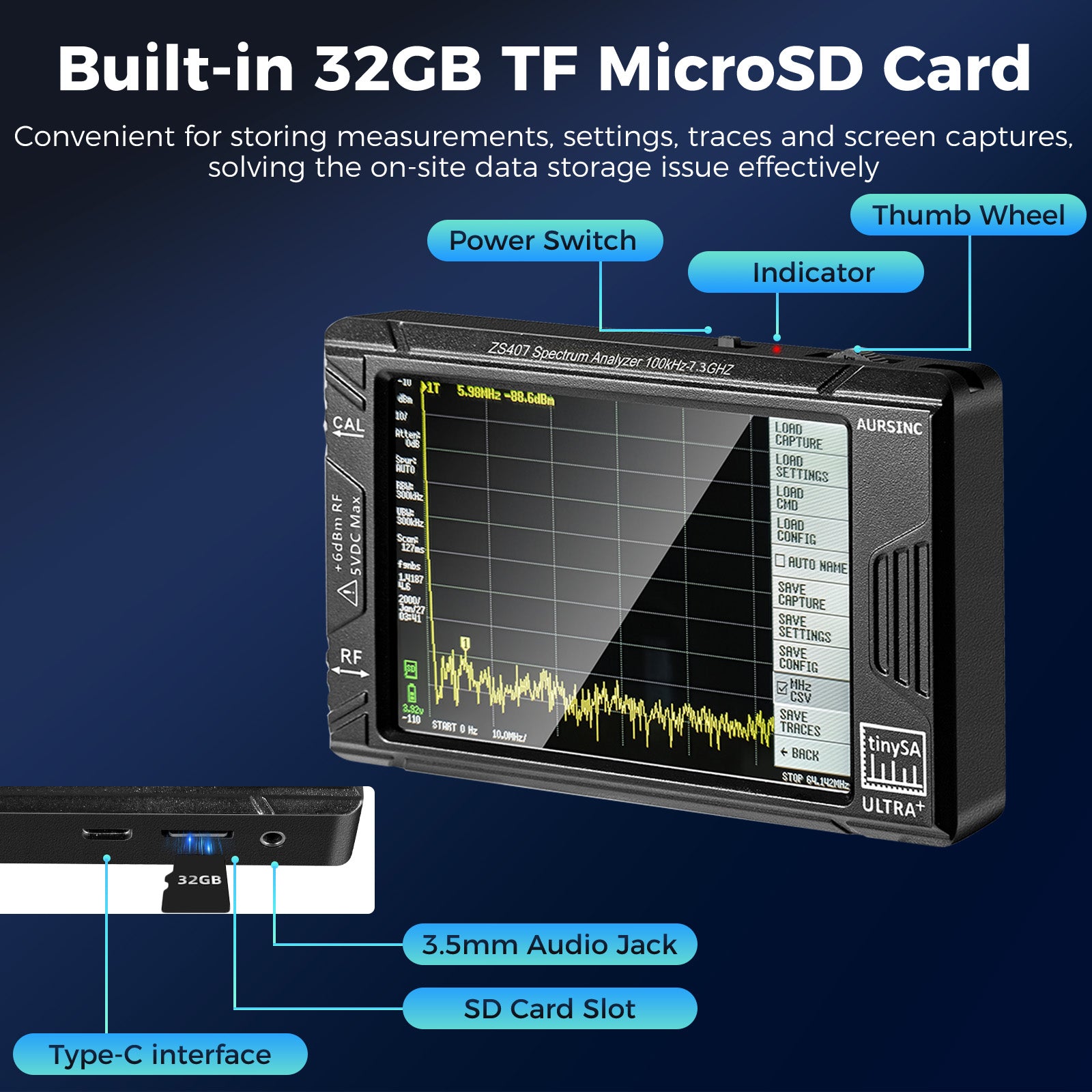

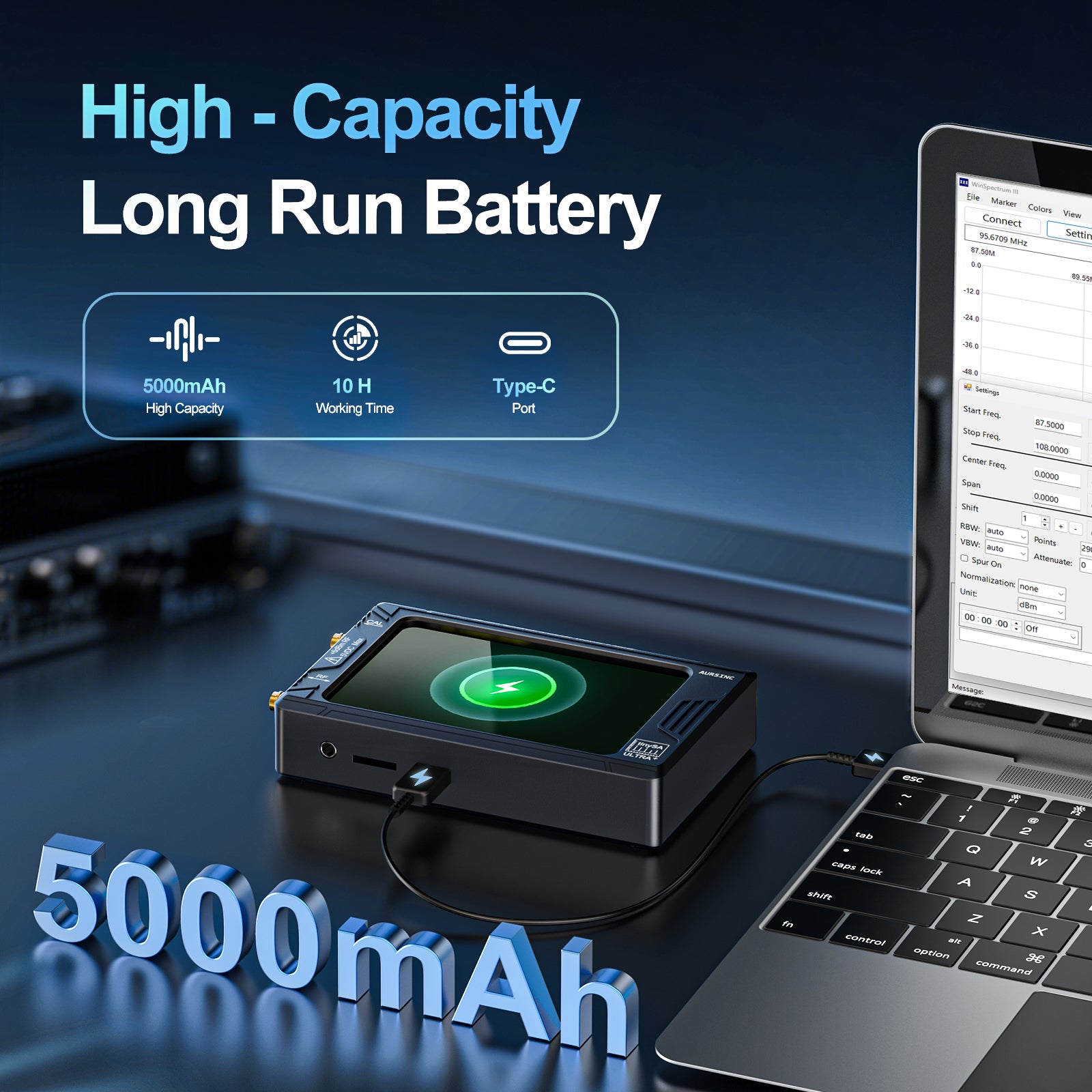

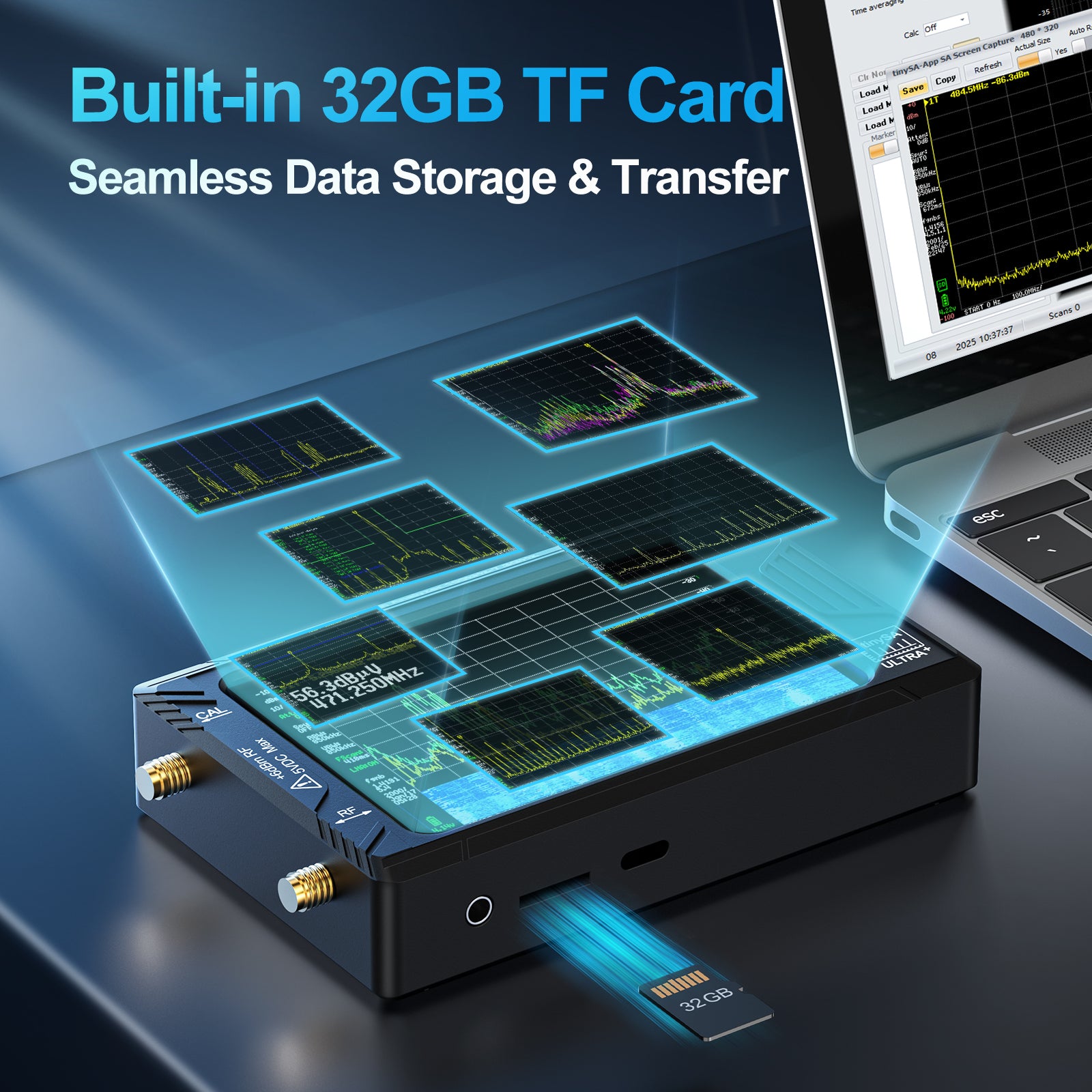

• Long-Lasting Battery: Equipped with a Li-polymer 3.7V 5000mAh battery, the battery life is significantly increased compared to previous models. It can meet the needs of continuous testing for a long time or outdoor operations, reducing the inconvenience of frequent charging and improving work efficiency. Built-in 32GB micro SD card, solving the on-site data storage issue, convenient for data sharing and storage

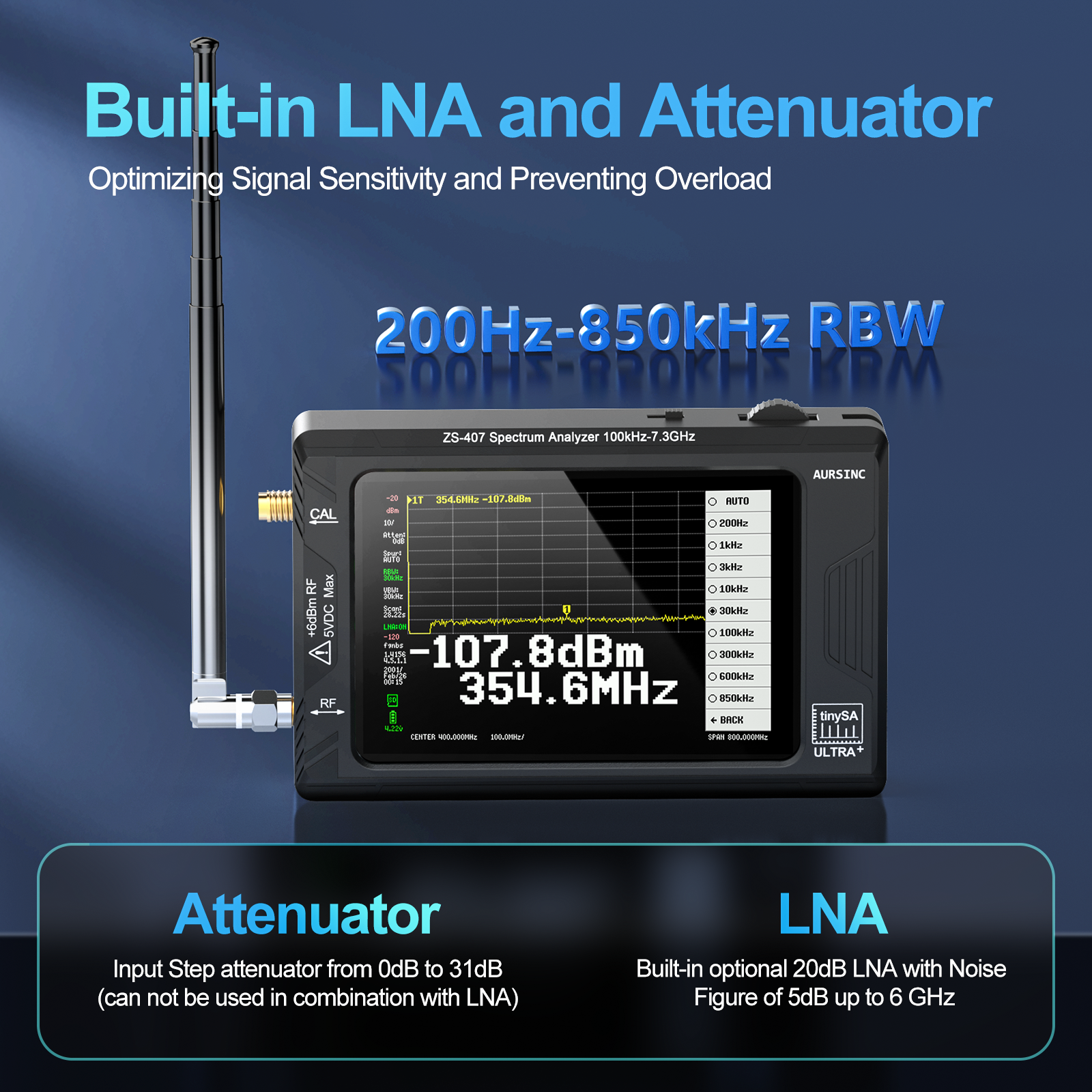

• High-Gain Low-Noise Amplifier (LNA): The internal LNA gain can reach 20dB up to 7.3GHz, effectively enhancing the reception ability of weak signals. At the same time, at 100MHz, the DANL is as low as -169dBm/Hz when the LNA is on, reducing noise interference and improving the accuracy of signal measurement
• Excellent Phase Noise Performance: The phase noise is -100dBc/Hz at a 10kHz offset and -103dBc/Hz at a 100kHz offset. The low phase noise indicates high signal purity, enabling more accurate analysis of signal frequency stability and spectral purity. It is crucial for high-precision RF measurement and communication system performance evaluation

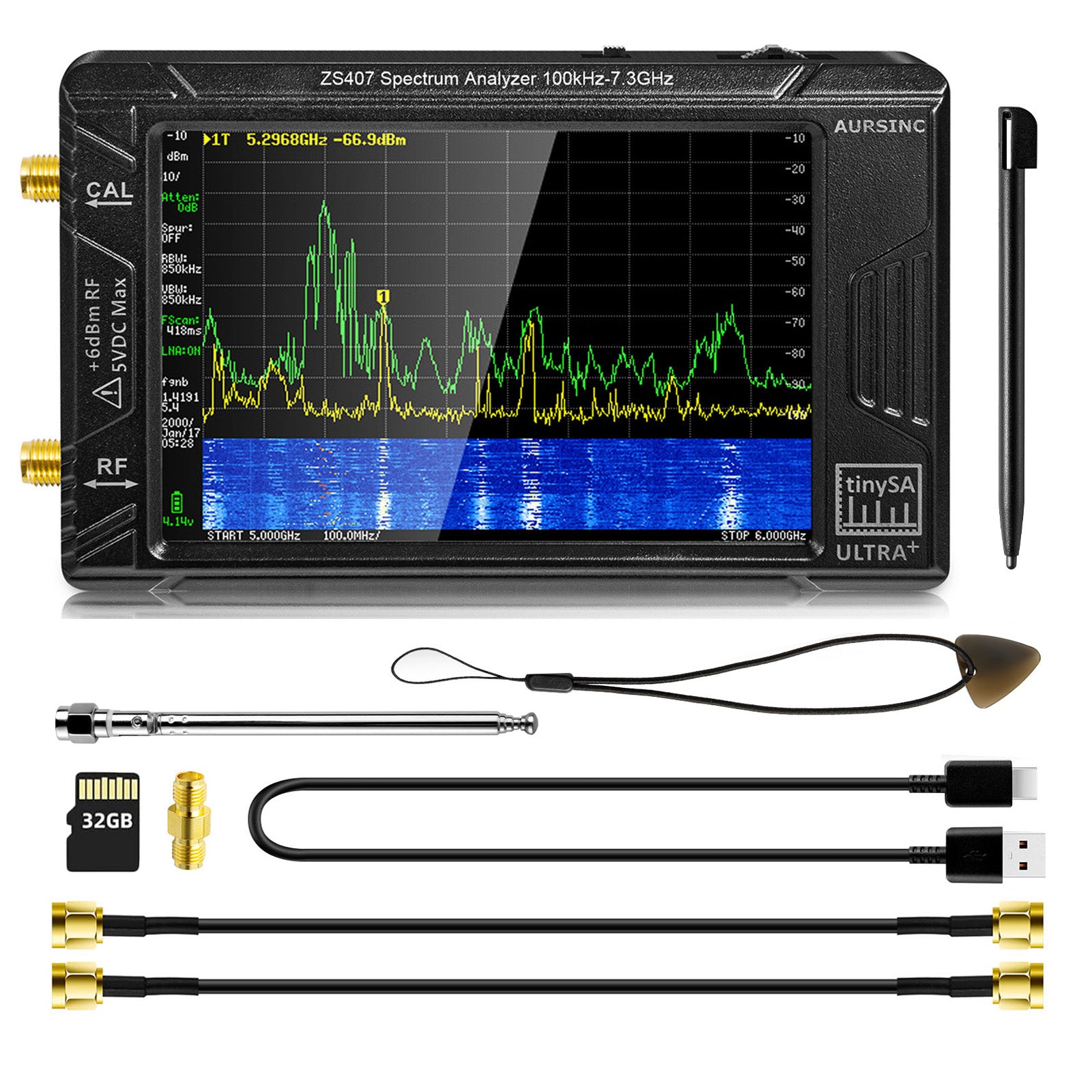

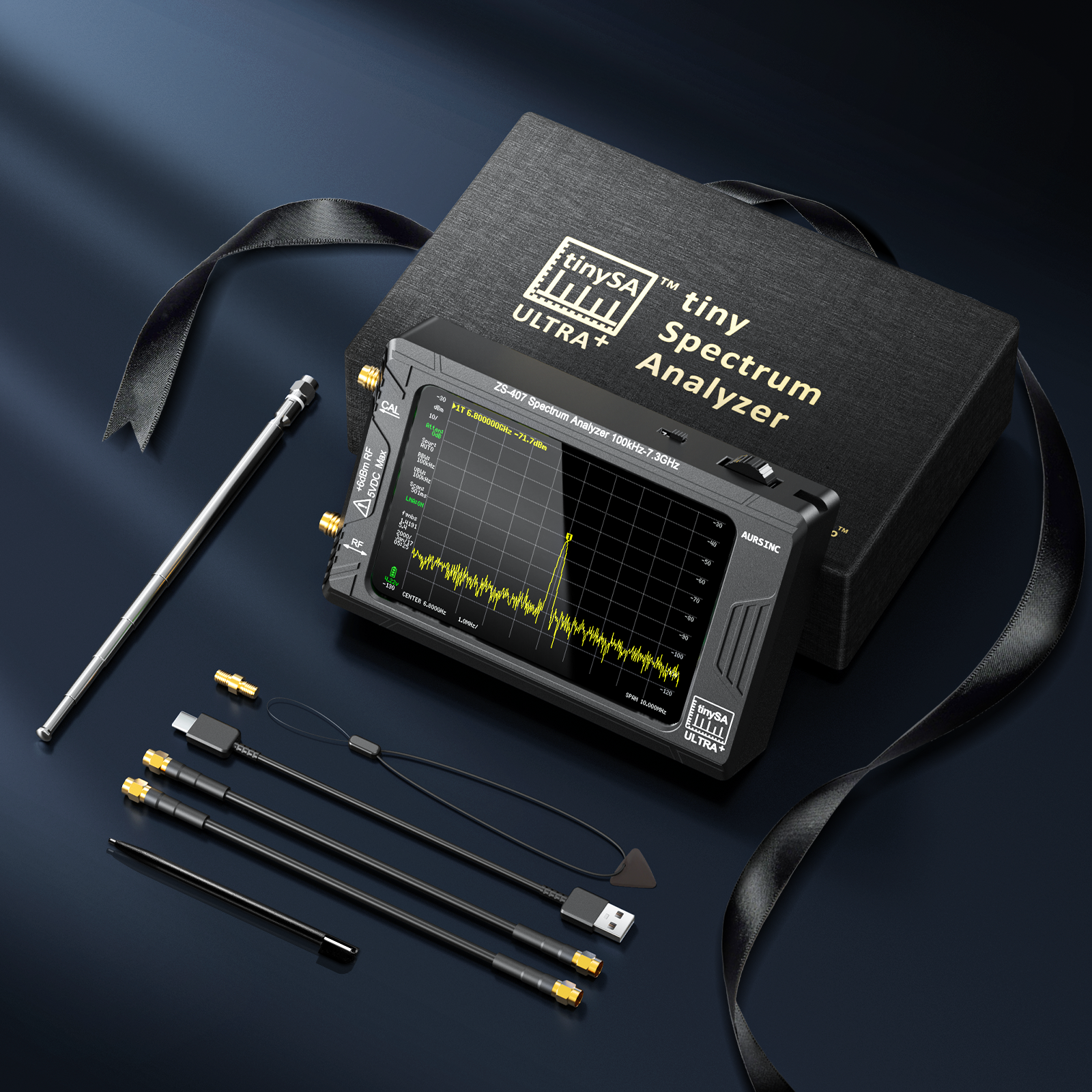

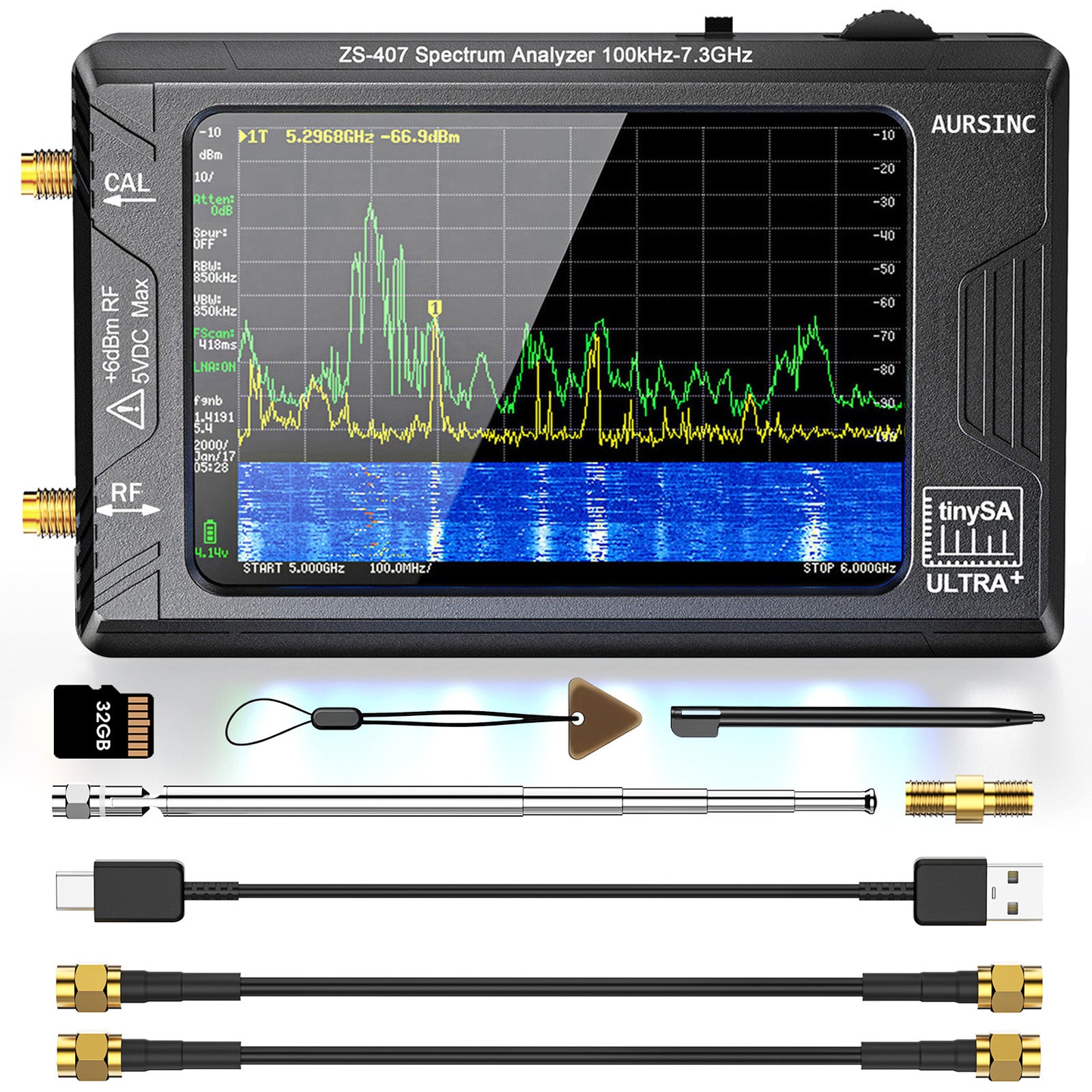

• Pakage List: 1x Tinysa ULTRA+ ZS407 Spectrum Analyzer (built-in 5000mah rechargeable battery); 1x 32GB Micro SD card (plugged in the host); 2x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum; 1x Antenna with SMA connector; 1x stylus pen

Specification

User interface:

• Display resolution 480*320 pixels
• Screen diagonal 4"
• 16 bits per RGB pixels
• Resistive touch control
• Jog switch control
• USB serial port control
• Optional TTL USART port on the internal PCB
• Linear power supply to avoid switching noise

Spectrum Analyzer spec:

• Input frequency range from 100kHz to 900 MHz  in normal mode and up to 7.3GHz  with ULTRA mode enabled
• Input impedance 50 ohm when input attenuation set to 10dB or more.
• Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps when LNA not active
• Maximum +/-5V DC input
• Absolute maximum input level of +6dBm with 0dB internal attenuation
• Absolute maximum short term peak input power of +20dBm with 30dB internal attenuation
• Suggested maximum input power of +0dBm with internal attenuation in automatic mode
• For best measurements keep input power below -25dBm
• Input Intercept Point of third order modulation products (IIP3) of +15dBm with 0dB internal attenuation
• 1dB compression point at -1dBm with 0dB internal attenuation
• Power detector resolution of 0.5dB and linearity versus frequency of +/-2dB below 5.3GHz, +/-5dB between 5.3GHz and 6GHz
• Minimum burst length for correct level measurement at 850kHz RBW in zero span mode of 50 microseconds
• Absolute power level accuracy after power level calibration of +/- 2dB
• Built-in optional 20dB LNA with Noise Figure of 5dB up to 6 GHz
• Lowest discernible signal without LNA at 30MHz using a resolution bandwidth of 30kHz of -102dBm
• Lowest discernible signal with LNA at 30MHz using a resolution bandwidth of 200Hz of -145dBm
• Frequency accuracy equal to the selected resolution bandwidth
• Phase noise at 30MHz of -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset
• Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB
• Resolution filters with a width of 0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz.
• On screen resolution of 51, 101, 145, 290 or 450 measurement points.
• Scanning speed of over 1000 points/second using largest resolution filters.
• Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth
• Spur suppression option for assessing if certain signals are internally generated or actually present in the input signal
• Headphone output for listening to the demodulated audio (AM only). Stereo connector with or without microphone, high impedance is louder, short protected

Signal Generator spec:

• Sine wave output with harmonics below -40dB of fundamental from 100kHz to 900MHz
• Output level selectable in 1dB steps between -115dBm and -19dBm
• Above 800MHz choice of two output modes:
  • Cleanest signal mode: square wave, up to 6 GHz with coarse frequency steps and less accurate output level
  • Highest accuracy mode: reduced harmonics with possibly strong spurs up to 7.3 GHz with frequency resolution equal to below 800MHz and fine output level steps.
• Level accuracy +/- 2dB up to 800Mhz between -72dBm and -19dBm, less accuracy below -72dBm, even less accuracy below -110dBm
• Output frequency resolution 57.2Hz
• Optional AM or FM modulation frequencies between 50Hz and 5kHz (AM) or 1kHz(FM) or sweep over selectable frequency span
• AM modulation depth between 10% and 100%
• FM deviation between 1kHz and 300kHz
• Optional output level sweep over maximum the entire output level range

Reference generator spec:

• Optional square wave output with fundamental at -35.6dBm connected to cal output
• Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz.

Battery spec:

• Charging time max 1 hour on 500mA minimum USB port or USB charger
• Operation on fully charged battery for at least 3 hours
