AURSINC TinySA Ultra+ ZS406 Spectrum Analyzer, 4.0 Inch 100kHz-5.4GHz Handheld Frequency Analyzer with 32Gb Card, HW V0.4.6, 2-in-1 Signal Generator MF/HF/VHF UHF Input, 2025 Upgraded

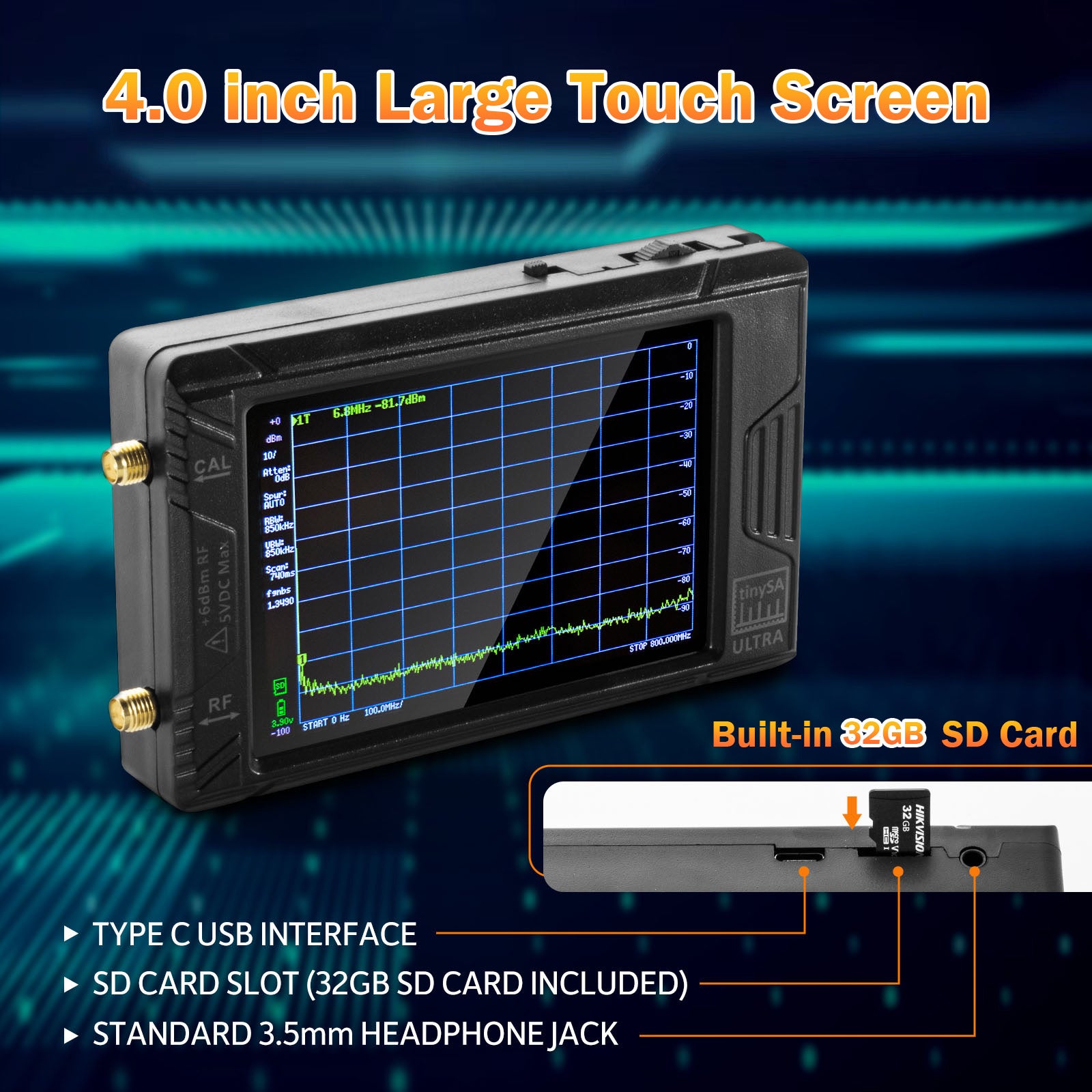

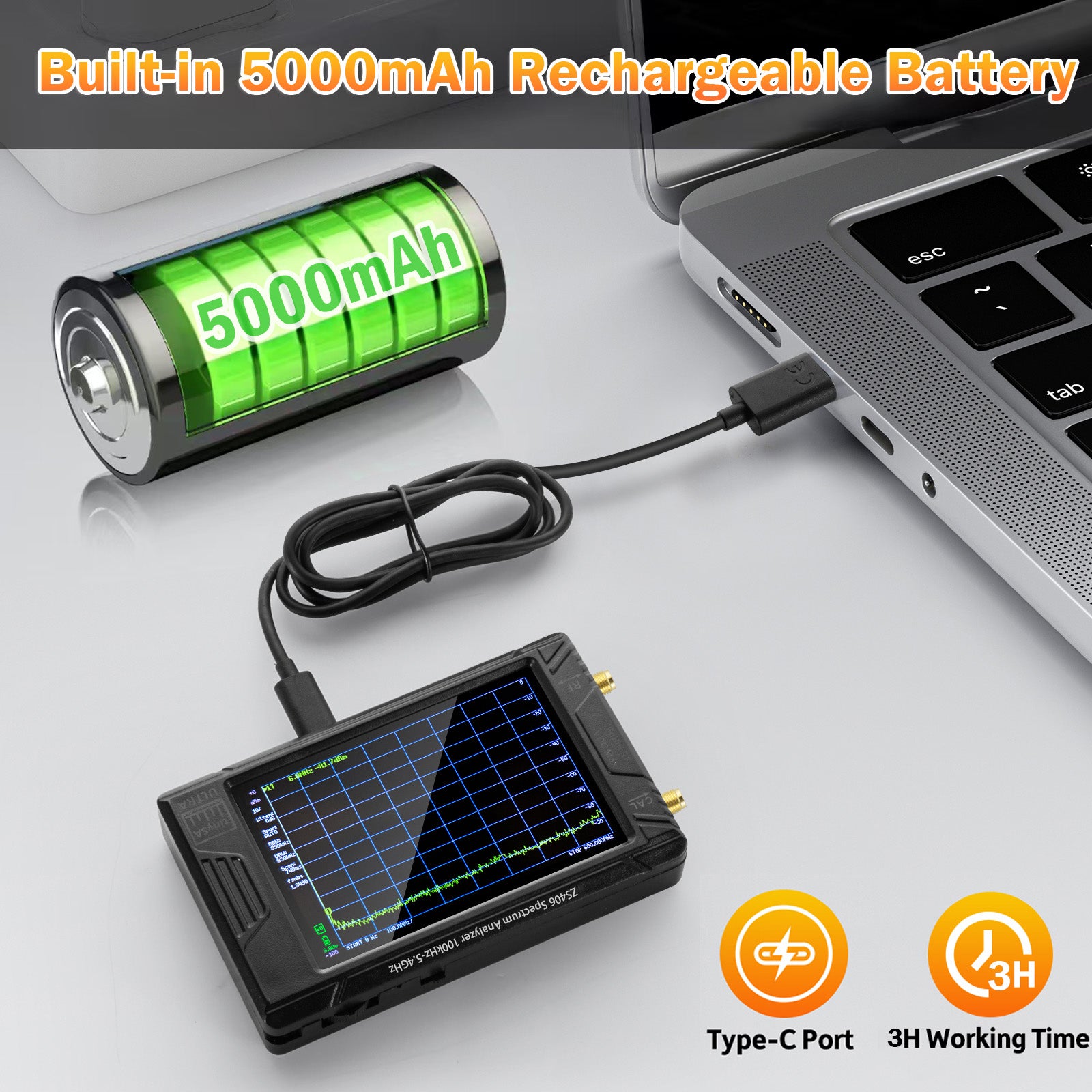

• [UPGRADED SPECTRUM ANALYZER] AURSINC Tinysa Ultra+ ZS406 installed with NEW HW V0.4.6, with 4.0 inch 480*320 touchscreen display, 100kHz to 5.4GHz widely measure range. Built-in 32GB micro SD card, solving the on-site data storage issue, convenient for data sharing and storage. Built-in 5000mAh battery, a fully-charged battery allows for at least 3 hours of operation, without frequent recharging interruptions

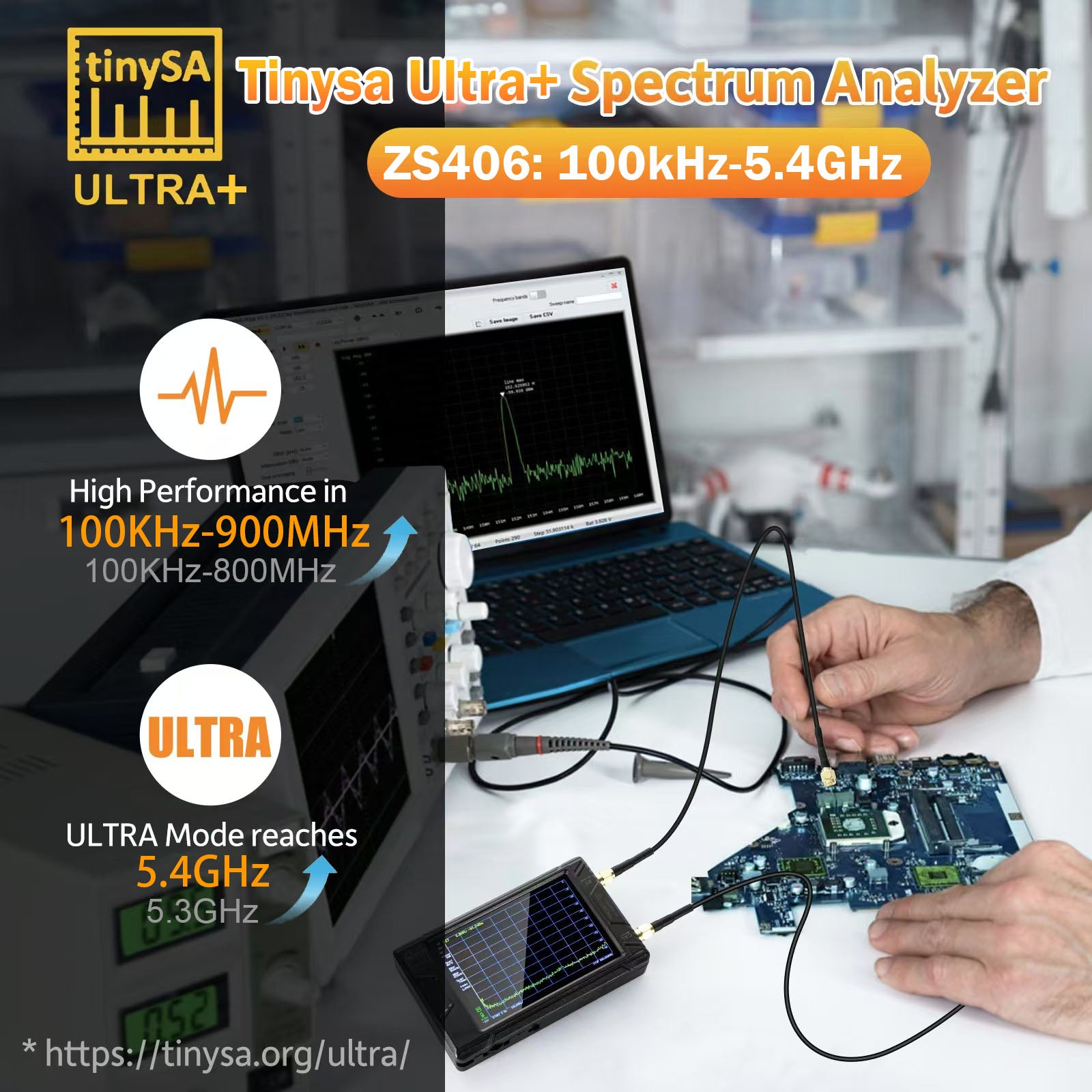

• [WIDELY FREQUENCY RANGE] The Tiny sa ULTRA+ has an ultra measuring frequency range of 100kHz to 5.4GHz, spectrum analyzer for 100kHz-900MHz and Ultra mode up to 6GHz. Switchable resolution bandpass filters from 200Hz to 850kHz, you could fast and accurate execute measurement tests. Color display showing max 450 points providing gapless covering up to the full frequency range

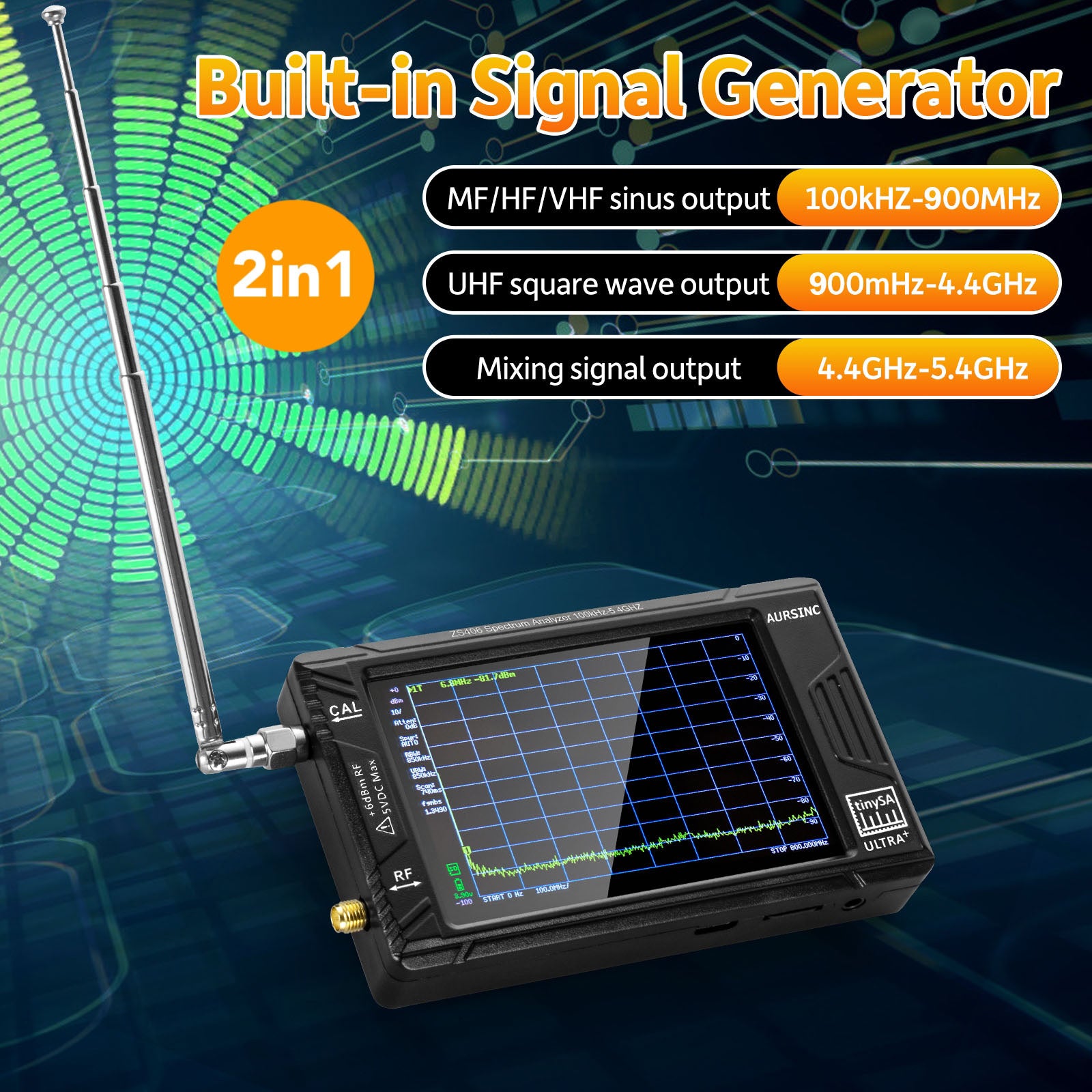

• [2 IN 1 DEVICE] When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 100kHZ-900MHz, UHF square wave output between 800mHz-4.4GHz, Mixing signal output is between 4.4GHz-5.4GHz. Built-in calibration signal generator that is used for automatic self test and low input calibration
• [200Hz-850kHz RBW] RBW frequency from 200hz to 850khz which can be set to match the measurement requirements, meet SBB two-tone test requirements and fast scanning. The RBW is as low as 200Hz, which can effectively distinguish adjacent signals and meet the requirements of SSB dual-satellite inter-modulation test. Input Step attenuator from 0dB to 31dB (can not be used not in combination with LNA)
• [EXCELLENCE PHASE NOISE] Phase noise at 30MHz of -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset, DANL -166dBm/Hz. In the level menu, there is the LNA, which will provide 20db of extra gain if you have very low level signal (the LNA in tinySA ULTRA is only effective below 3.5GHz) The default maximum frequency is 800mhz, so you no longer have to switch between low and high range, and can monitor the complete range in one sweep

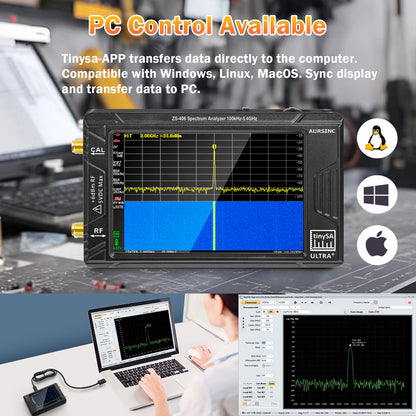

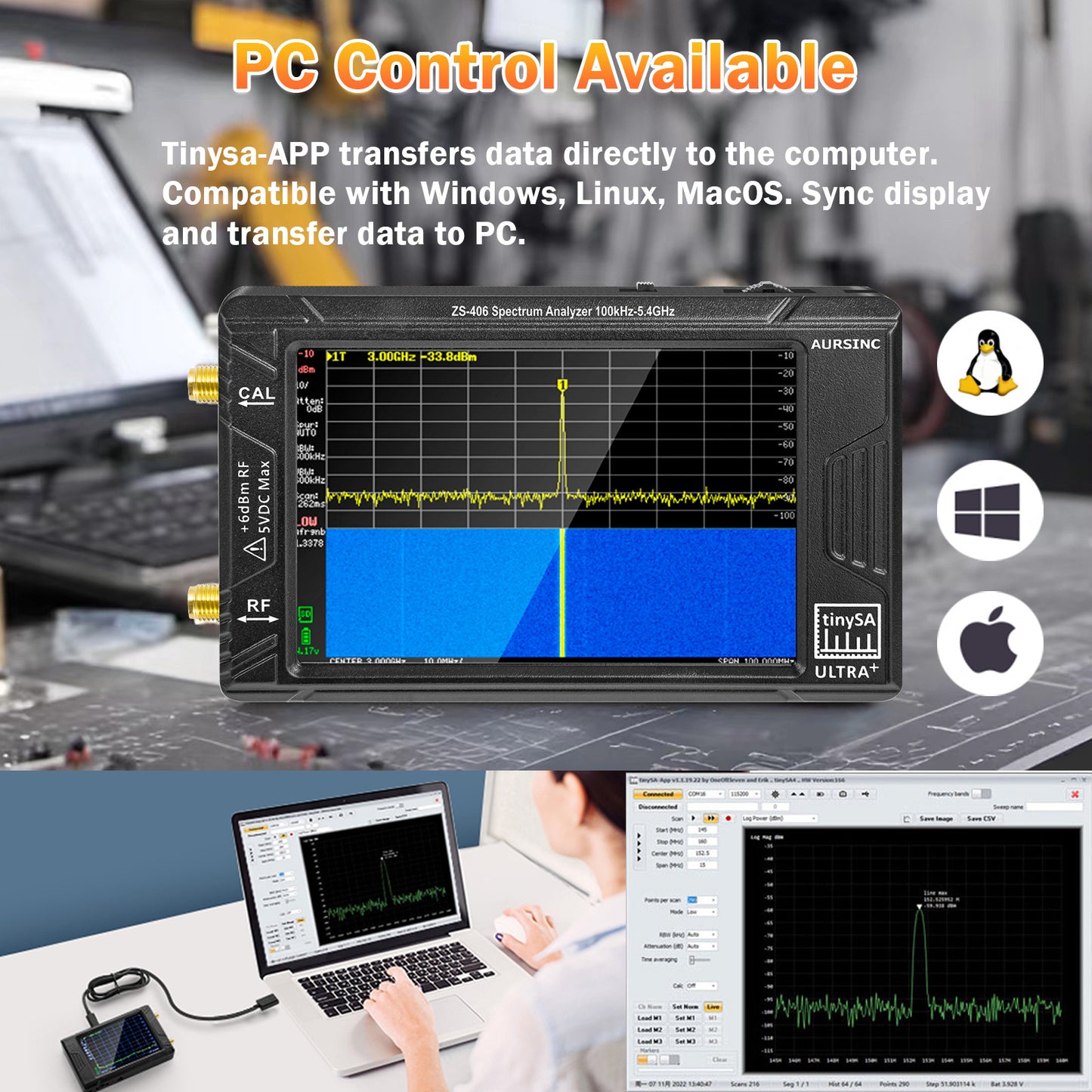

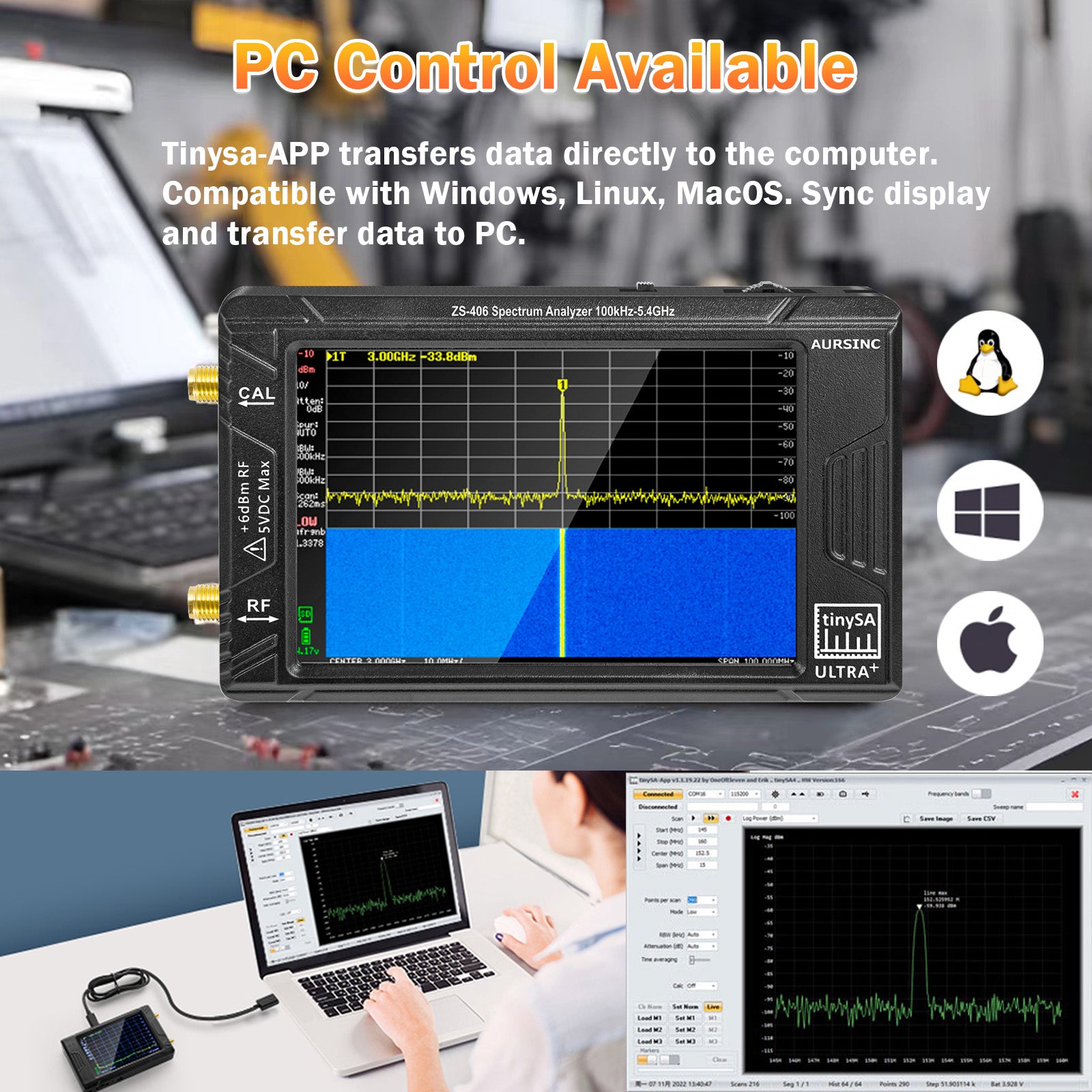

• [PC CONTROL] This tinysa ultra can connect to a PC via USB, Tinysa-APP directly transfers data to the computer. The USB interface implements the Serial over USB (CDC) protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel

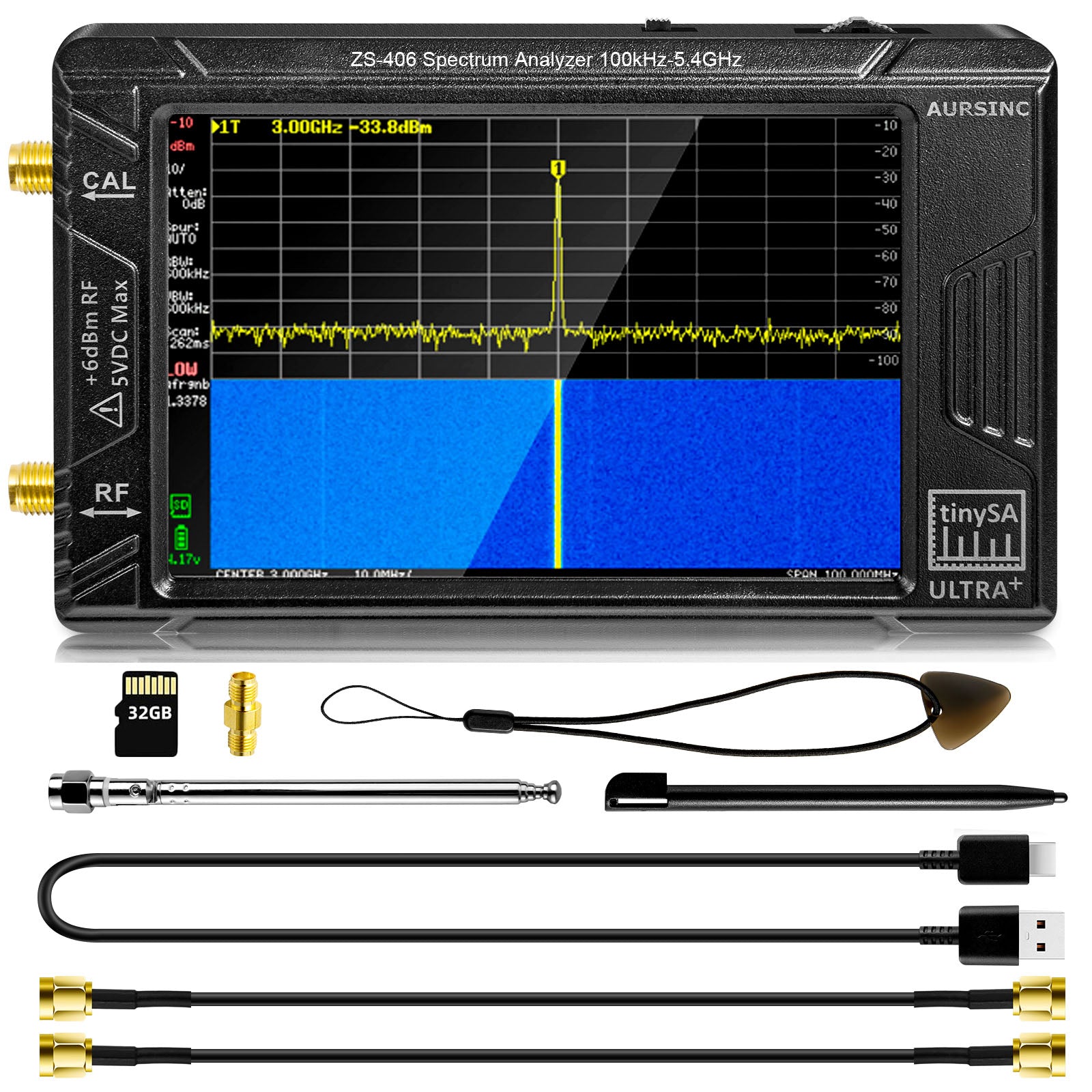

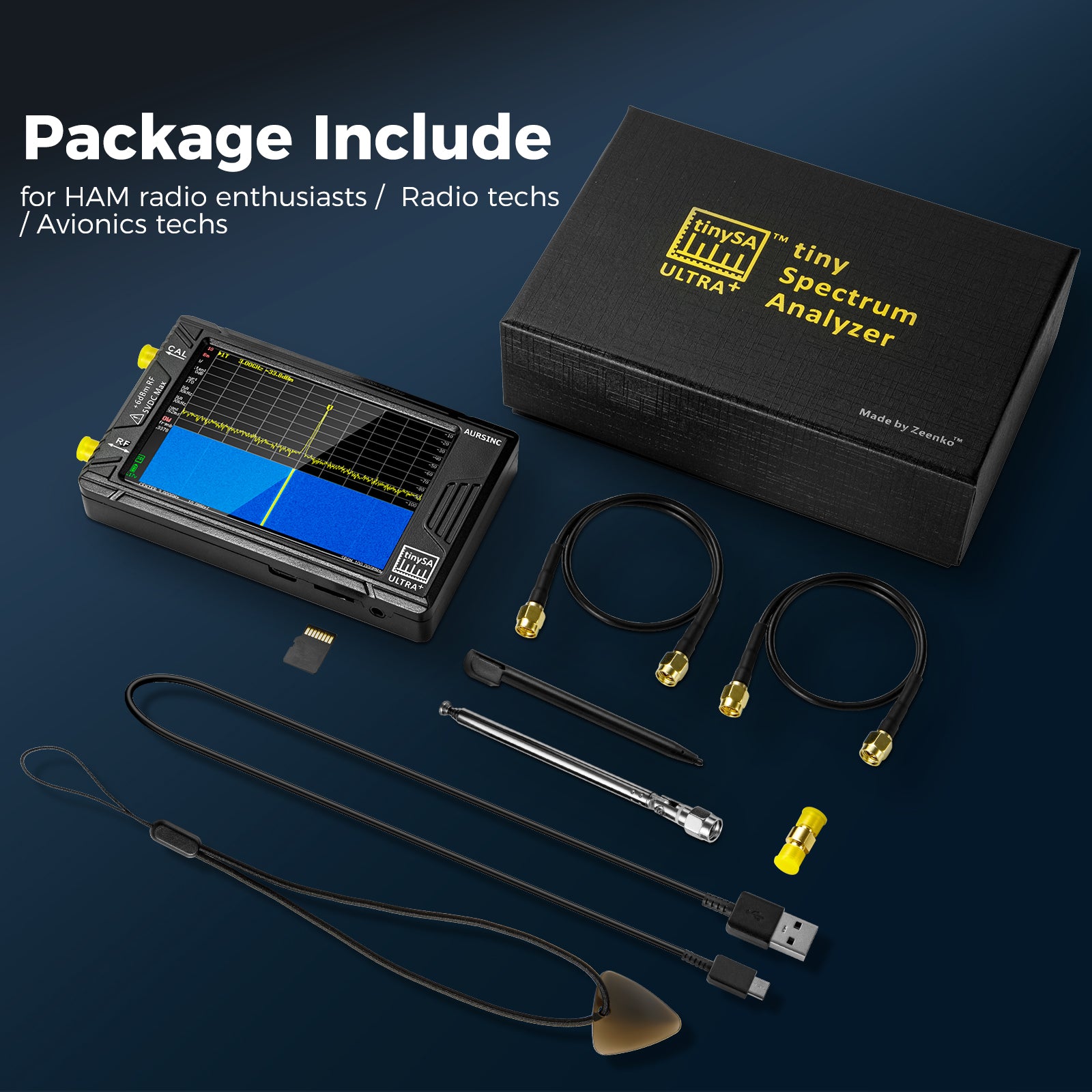

• [WHAT YOU GET] 1x Tinysa ULTRA Spectrum Analyzer (built-in 5000mah rechargeable battery); 1x 32GB Micro SD card (plugged in the host); 2x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum; 1x Antenna with SMA connector; 1x stylus pen

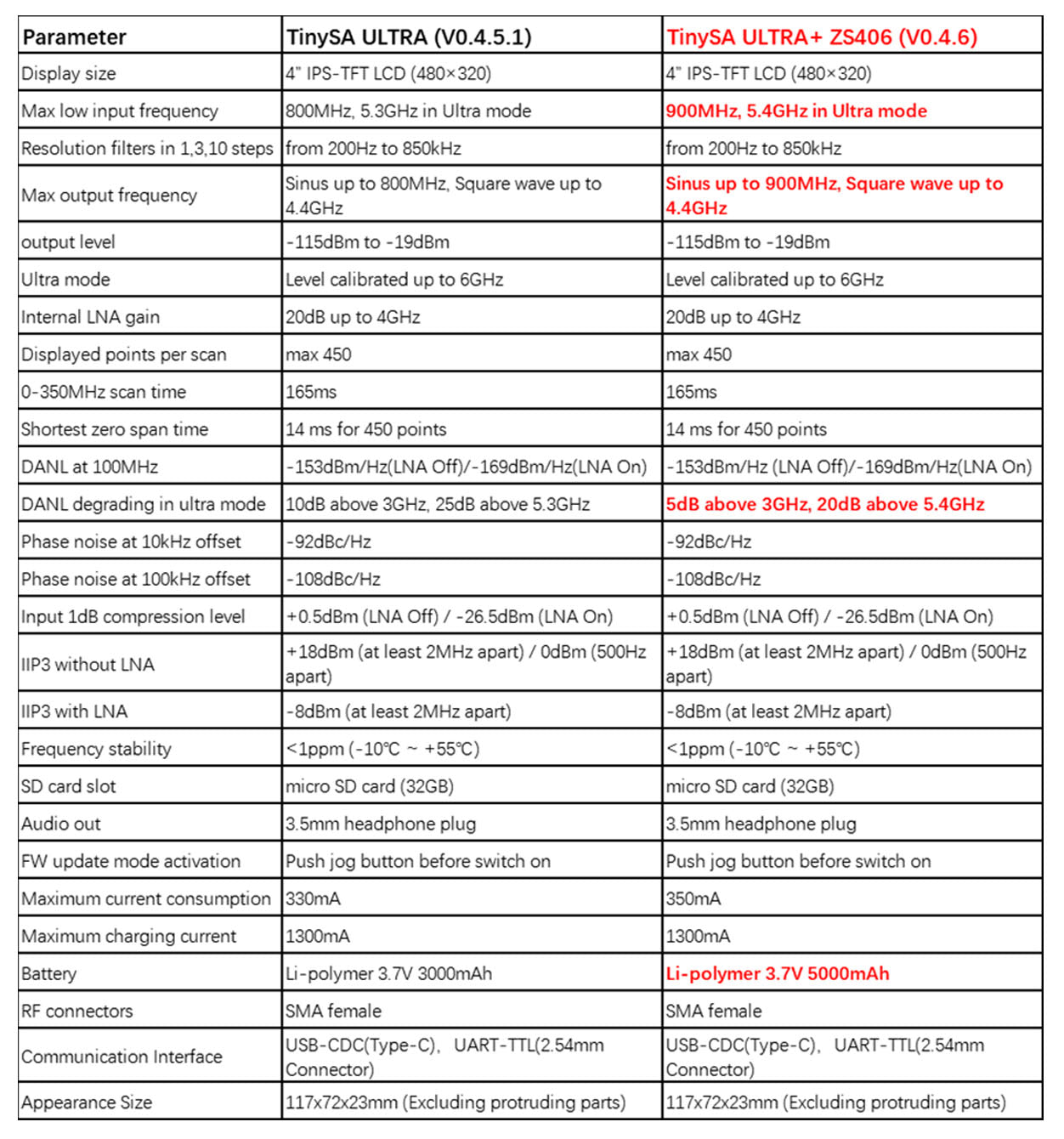

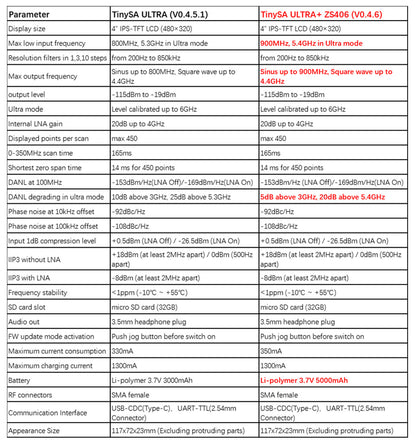

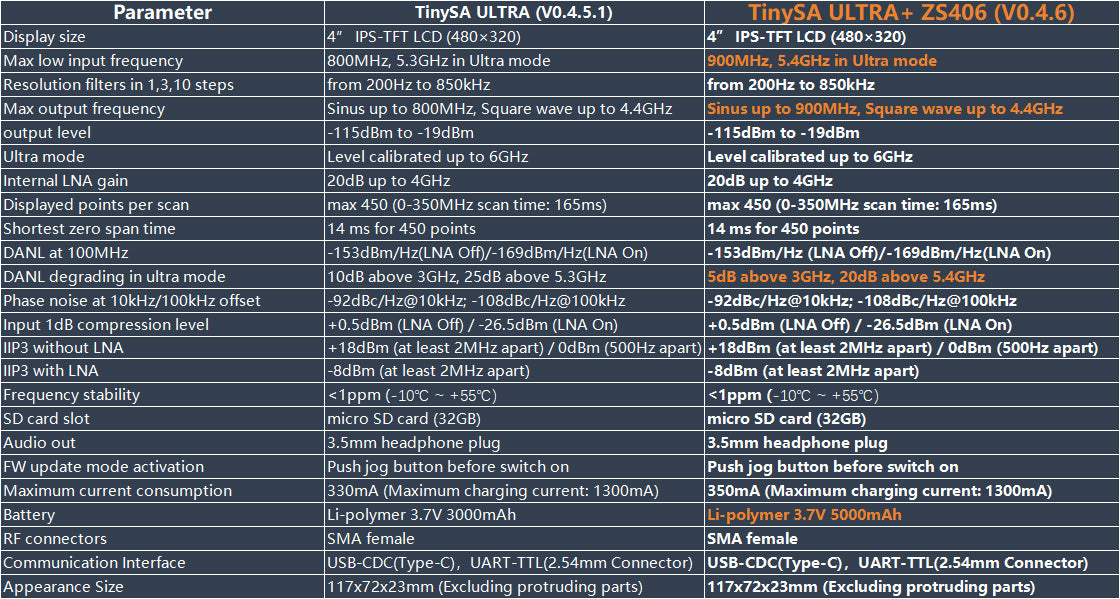

Specification

User interface:

• Display resolution 480*320 pixels
• Screen diagonal 4"
• 16 bits per RGB pixels
• Resistive touch control
• Jog switch control
• USB serial port control
• Optional TTL USART port on the internal PCB
• Linear power supply to avoid switching noise.

Spectrum Analyzer spec:

• Input frequency range from 100kHz to 900 MHz in normal mode and up to 6GHz with ULTRA mode enabled
• Input impedance 50 ohm when input attenuation set to 10dB or more.
• Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps when LNA not active
• Maximum +/-5V DC input
• Absolute maximum input level of +6dBm with 0dB internal attenuation
• Absolute maximum short term peak input power of +20dBm with 30dB internal attenuation
• Suggested maximum input power of +0dBm with internal attenuation in automatic mode
• For best measurements keep input power below -25dBm
• Input Intercept Point of third order modulation products (IIP3) of +15dBm with 0dB internal attenuation
• 1dB compression point at -1dBm with 0dB internal attenuation
• Power detector resolution of 0.5dB and linearity versus frequency of +/-2dB below 5.3GHz, +/-5dB between 5.3GHz and 6GHz
• Minimum burst length for correct level measurement at 850kHz RBW in zero span mode of 50 microseconds
• Absolute power level accuracy after power level calibration of +/- 2dB
• Built-in optional 20dB LNA with Noise Figure of 5dB up to 4GHz
• Lowest discernible signal without LNA at 30MHz using a resolution bandwidth of 30kHz of -102dBm
• Lowest discernible signal with LNA at 30MHz using a resolution bandwidth of 200Hz of -145dBm
• Frequency accuracy equal to the selected resolution bandwidth
• Phase noise at 30MHz of -108dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset
• Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB
• Resolution filters with a width of 0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz.
• On screen resolution of 51, 101, 145, 290 or 450 measurement points.
• Scanning speed of over 1000 points/second using largest resolution filters.
• Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth
• Spur suppression option for assessing if certain signals are internally generated or actually present in the input signal
• Headphone output for listening to the demodulated audio (AM only). Stereo connector with or without microphone, high impedance is louder, short protected

Signal Generator spec:

• Sine wave output with harmonics below -40dB of fundamental from 100kHz to  900MHz
• Output level selectable in 1dB steps between -115dBm and -19dBm
• Above 800MHz choice of two output modes:
  • Cleanest signal mode: square wave, up to 4.4GHz with coarse frequency steps and less accurate output level
  • Highest accuracy mode: reduced harmonics with possibly strong spurs up to 5.4GHz with frequency resolution equal to below 900MHz and fine output level steps.
• Level accuracy +/- 2dB up to 800Mhz between -72dBm and -19dBm, less accuracy below -72dBm, even less accuracy below -110dBm
• Output frequency resolution 57.2Hz
• Optional AM or FM modulation frequencies between 50Hz and 5kHz (AM) or 1kHz(FM) or sweep over selectable frequency span
• AM modulation depth between 10% and 100%
• FM deviation between 1kHz and 300kHz
• Optional output level sweep over maximum the entire output level range

Reference generator spec:

• Optional square wave output with fundamental at -35.6dBm connected to cal output
• Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz.
