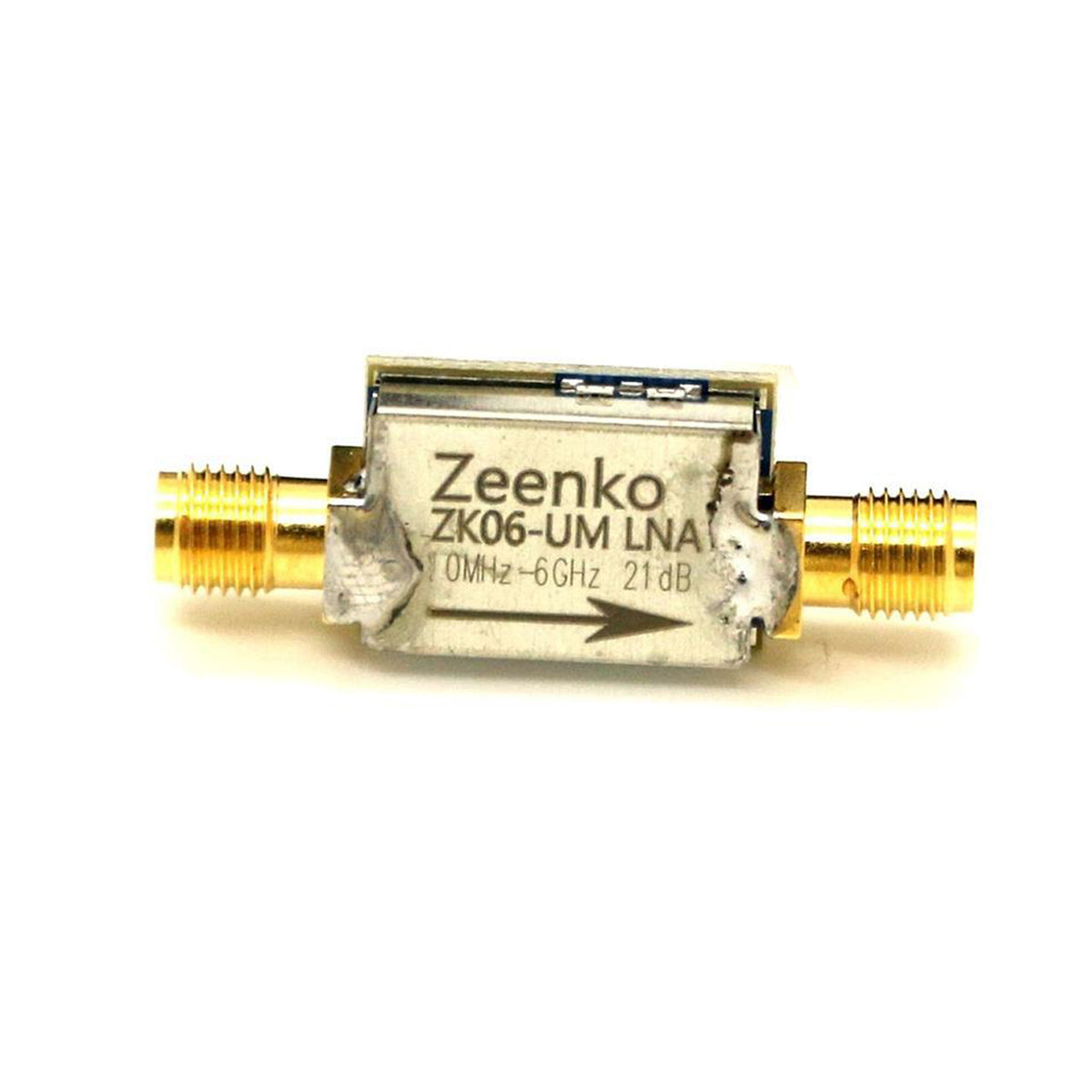

AURSINC ZK06-UM Low Noise Amplifier (LNA) Module, Broadband, 10M‑6GHz, 21dB Gain, USB Interface Powered, Used for TinySA ULTRA 5.8GHz Preamplifier, for RF & Software Defined Radio (SDR)

AURSINC ZK06-UM Low Noise Amplifier (LNA) Module, Broadband, 10M‑6GHz, 21dB Gain, USB Interface Powered, Used for TinySA ULTRA 5.8GHz Preamplifier, for RF & Software Defined Radio (SDR)

$18.99
$18.99
Sale Sold out
Shipping calculated at checkout.
  • [High Performance] Broadband, Low noise, Good flatness in the 1-6 GHz range. Gain: 21dB, OP1dB: 18dBm Typ. Supply Current: 80mA Off-chip bias, user can adjust the bias resistor to reduce the current
  • [USB Interface Powered] ZK06-UM is USB interface powered RF low noise amplifier with convenient power supply interface, moderate gain, high IP3 and low noise. Can be used to replace QPL9503, QPL9504 modules

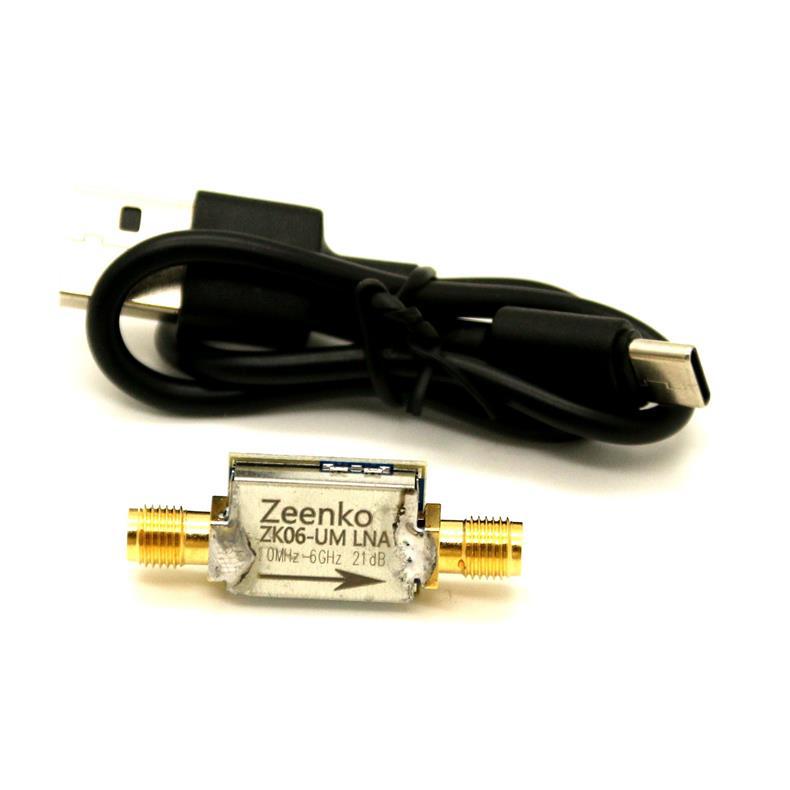

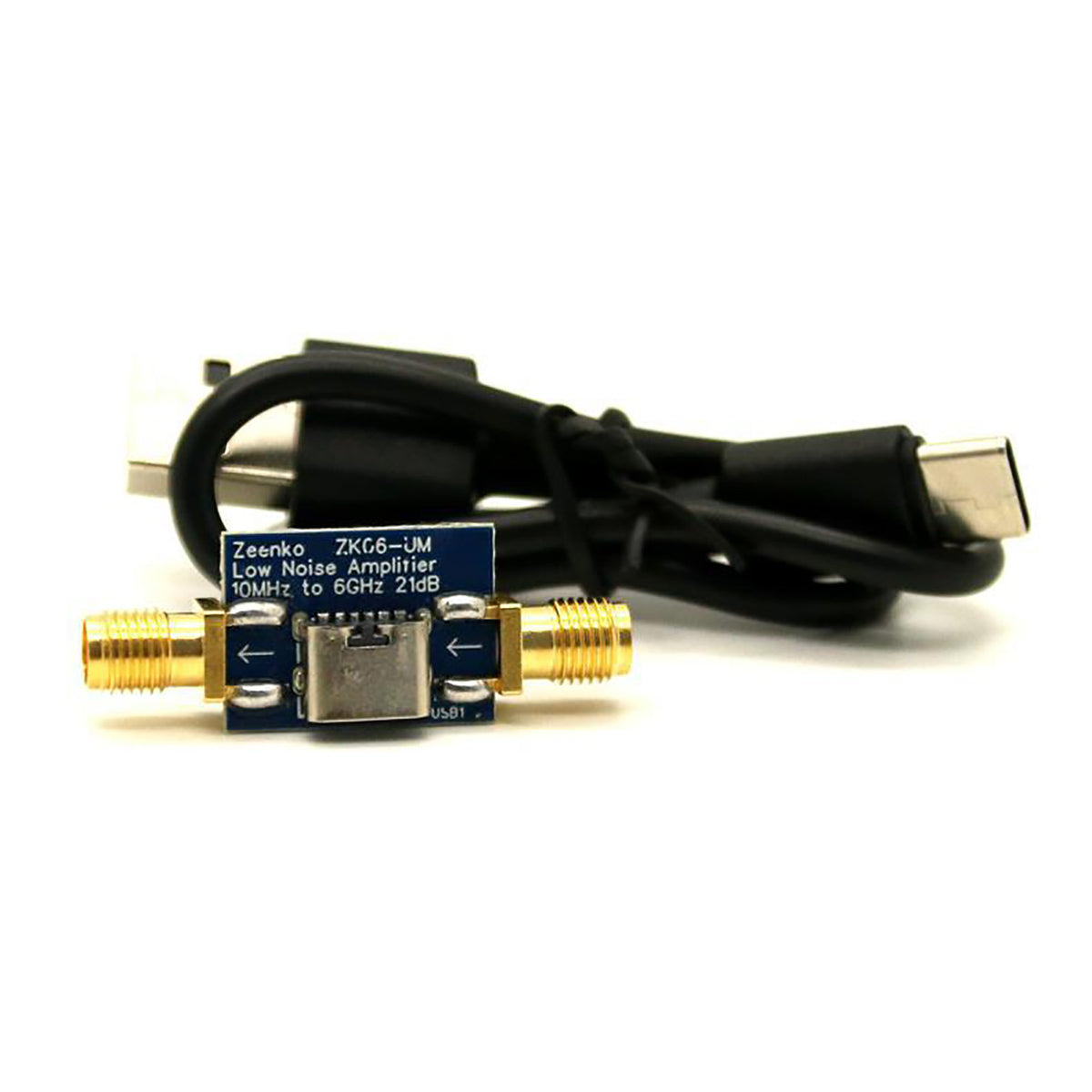

  • [Reduce Noise Floor] Powered by USB type-C interface, and the built-in high PSRR LDO can effectively reduce the power noise, which effectively reduces the noise floor compared with other vendor's USB direct-feed modules
  • [Application] Recommended for use as tinySA ULTRA 5.8GHz preamplifier. Since the LNA in tinySA ULTRA is effective only below 3.5GHz, adding an LNA can enhance high-frequency sensitivity. ZK06-UM is helpful for users requiring measurements at 5.8GHz
  • [Note]Unless specifically requested, please avoid using both the built-in LNA and external LNA of tinySA ULTRA at the same time. The ZK06-UM LNA module has a very compact design and uses a system shield case, which may rust if exposed to moisture. Please pay attention to moisture protection when using outdoors
