AURSINC

Upgraded AURSINC NanoVNA V2 PLUS4 Vector Network Analyzer, 4 inch Touchscreen, 50kHz-4.4GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, SWR, Phase, Delay, Smith Chart with 3200mAh Battery

Upgraded AURSINC NanoVNA V2 PLUS4 Vector Network Analyzer, 4 inch Touchscreen, 50kHz-4.4GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, SWR, Phase, Delay, Smith Chart with 3200mAh Battery

$249.99
$269.99 $249.99
Sale Sold out
Shipping calculated at checkout.
  • [ADVANCED NANOVNA] The NanoVNA V2 Plus4 is a 4GHz Transmission/Reflection vector network analyzer, measuring the S11 reflection coefficient and S21 transmission coefficient of a high-frequency network. It features the latest version V2.4, with firmware updates available at: nanorfe .com/nanovna-versions.html

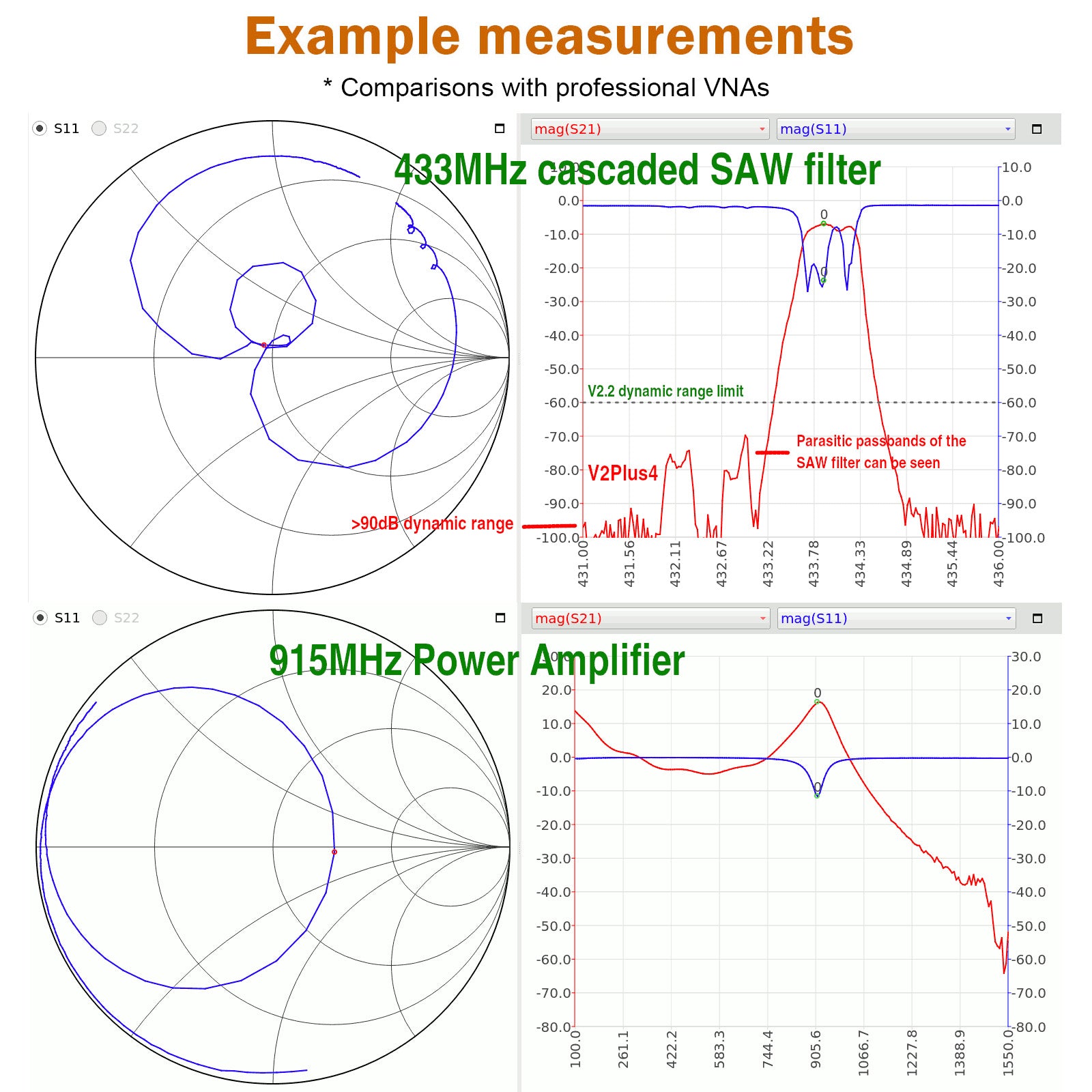

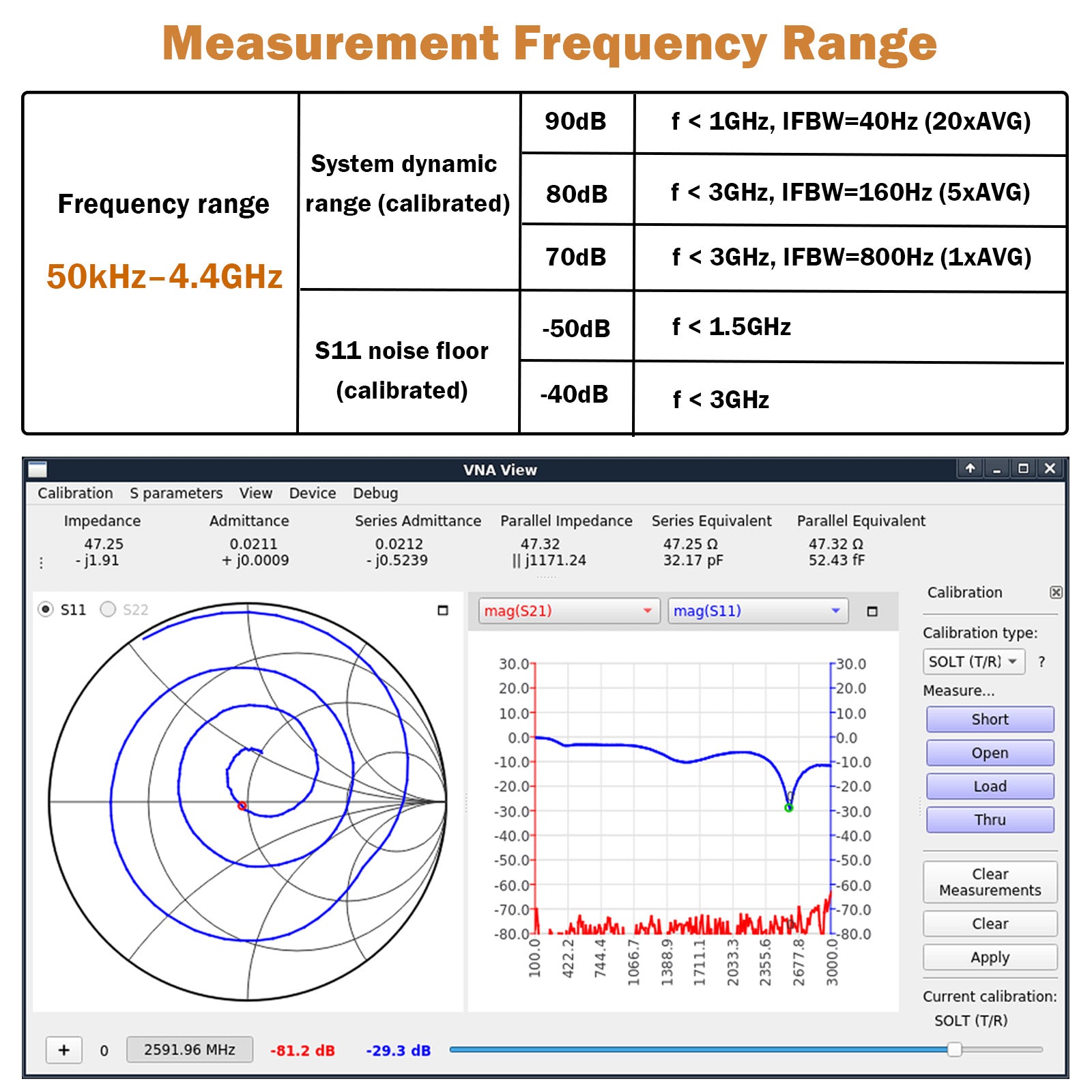

  • [ULTRA-WIDE FREQUENCY RANGE] AURSINC NanoVNA V2 Plus4 antenna analyzer provides a 50kHz–4GHz ultra-wide frequency range with improved precision and accuracy. Additionally, the V2 Plus4 does not use harmonics for measurements. The system dynamic range of this NanoVNA reaches 90dB (at 1GHz) and 80dB (at 3GHz)

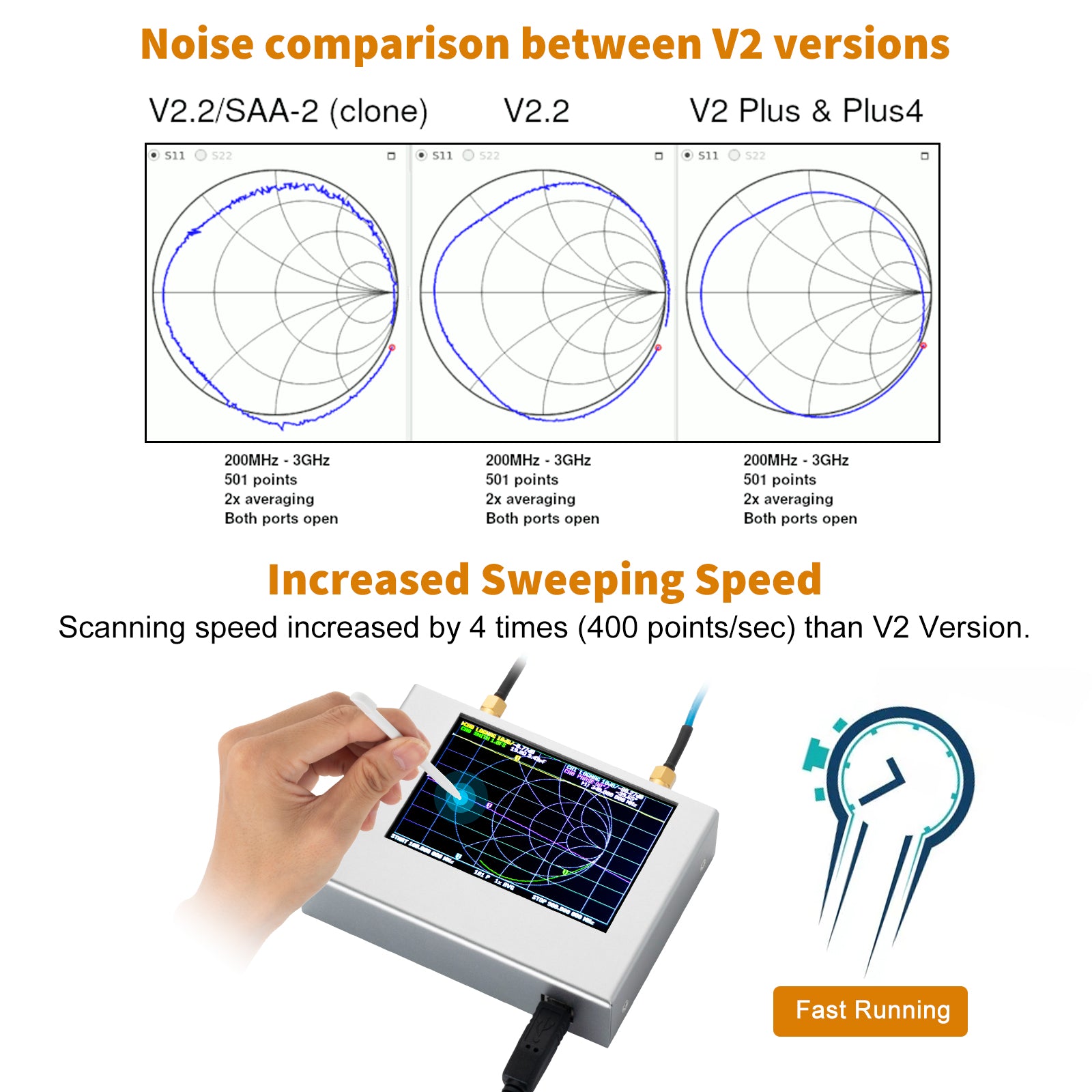

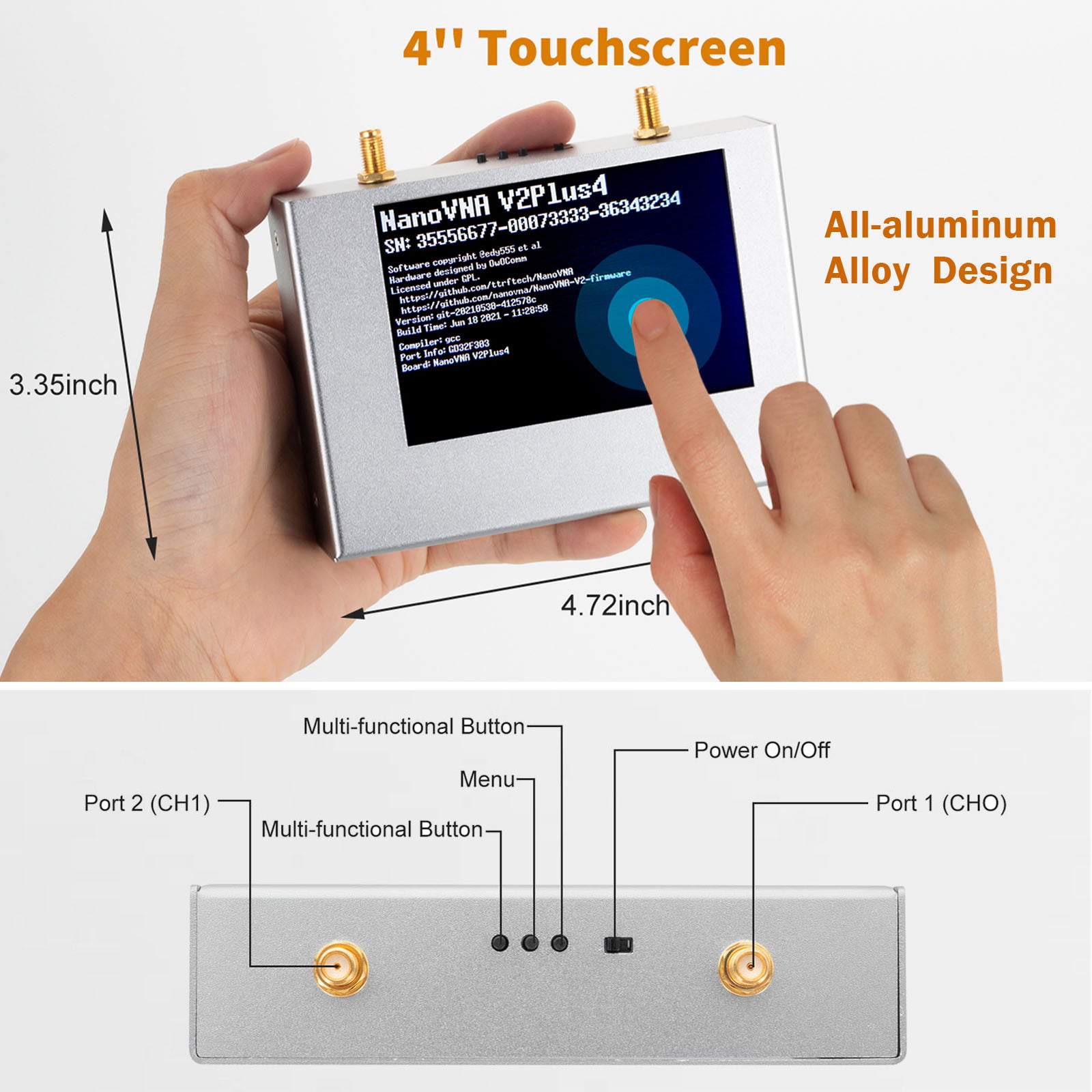

  • [PERFORMANCE] Equipped with a 4.0-inch large touchscreen, you can flip the display (via Menu - Display - Flip Display). It features an all-aluminum alloy design for effective anti-interference. The scanning speed of the NanoVNA V2 antenna analyzer is 4 times faster (400 points/sec). With low temperature drift, the V2 Plus4 automatically corrects drift errors internally to achieve highly repeatable measurements

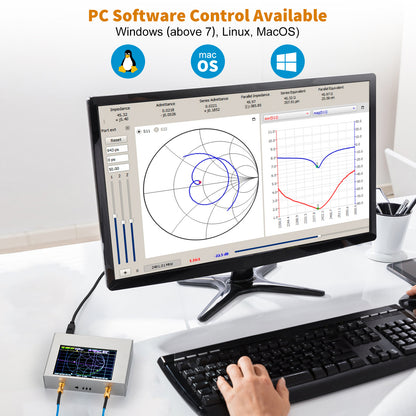

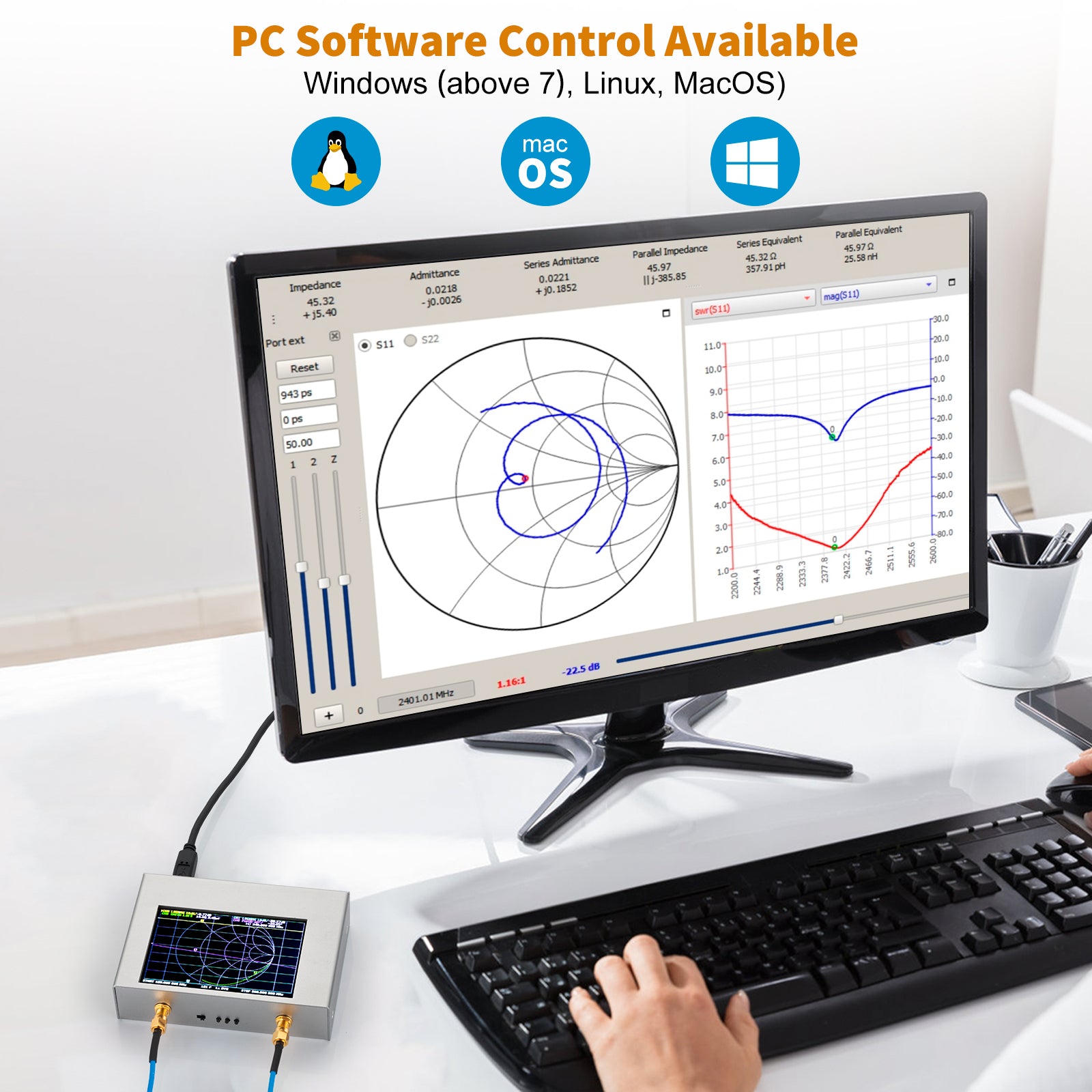

  • [SUPPORT PC CONTROL] Supports PC control via two applications (NanoVNA Saver / NanoVNA-QT), with software compatibility across Linux, Windows (7 or above), and Mac OS. The device supports S parameter export and scans over 1024 points (via NanoVNA-QT software). For more details: nanorfe .com/nanovna-v2-software.html
  • [LARGER CAPACITY RECHARGEABLE BATTERY] The upgraded antenna analyzer is equipped with a 3200mAh/3.7V rechargeable lithium battery, offering longer operating time and extended battery life. There are battery charge LED indicators on the back of the VNA that serve as the battery fuel gauge; the one closest to the CH1 port connector indicates the lowest charge level (≤ 25%)

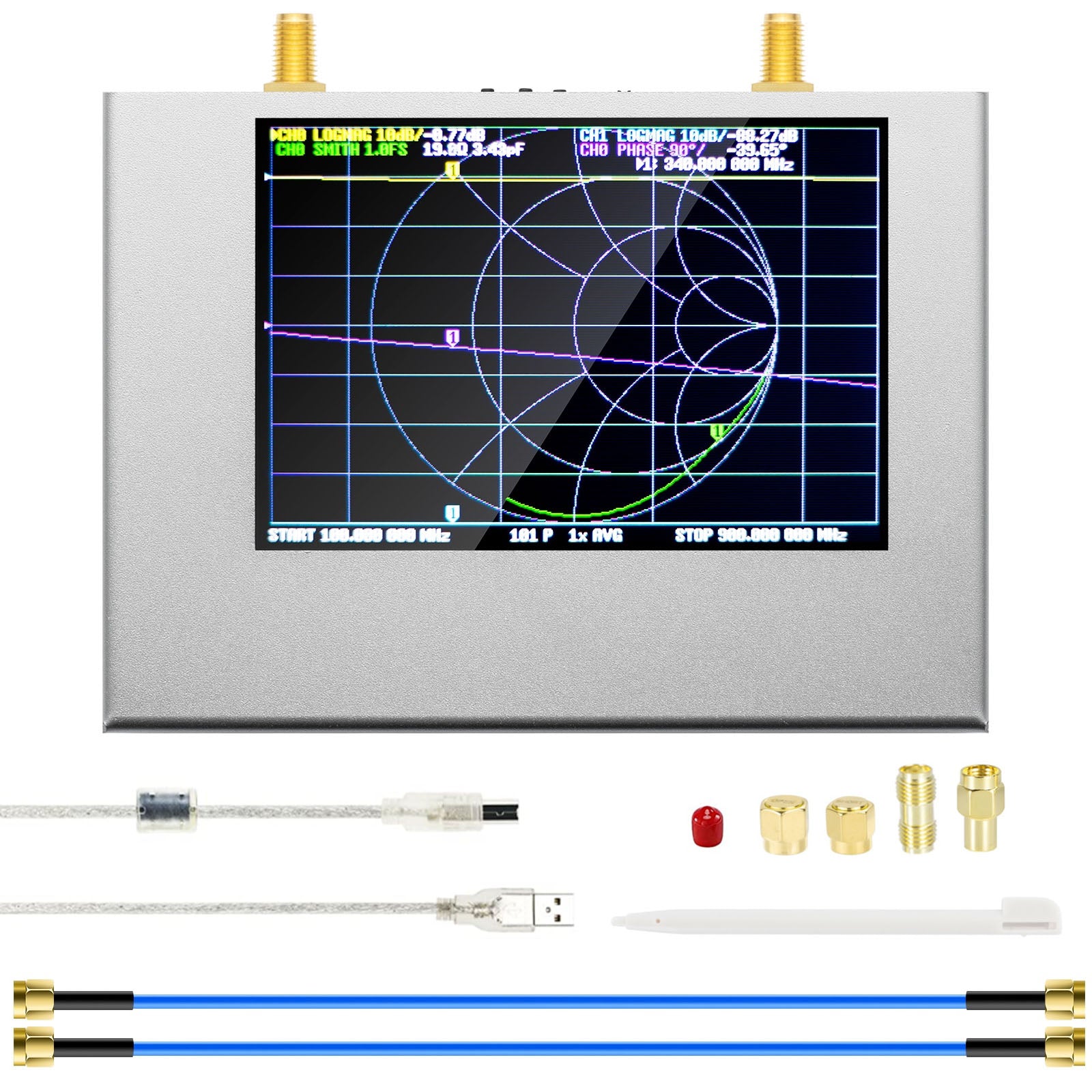

  • [WHAT ARE INCLUDED] The AURSINC NanoVNA V2 Plus4 is the original edition (if you purchase a cloned version, the VNA cannot perform software updates from the official website). It comes with a 4-piece calibration set—including open, short, load, and thru, two SMA male-to-male cables, a USB-B to USB-A cable (available in black or silver), and a stylus for operating the touch-screen menu and markers
